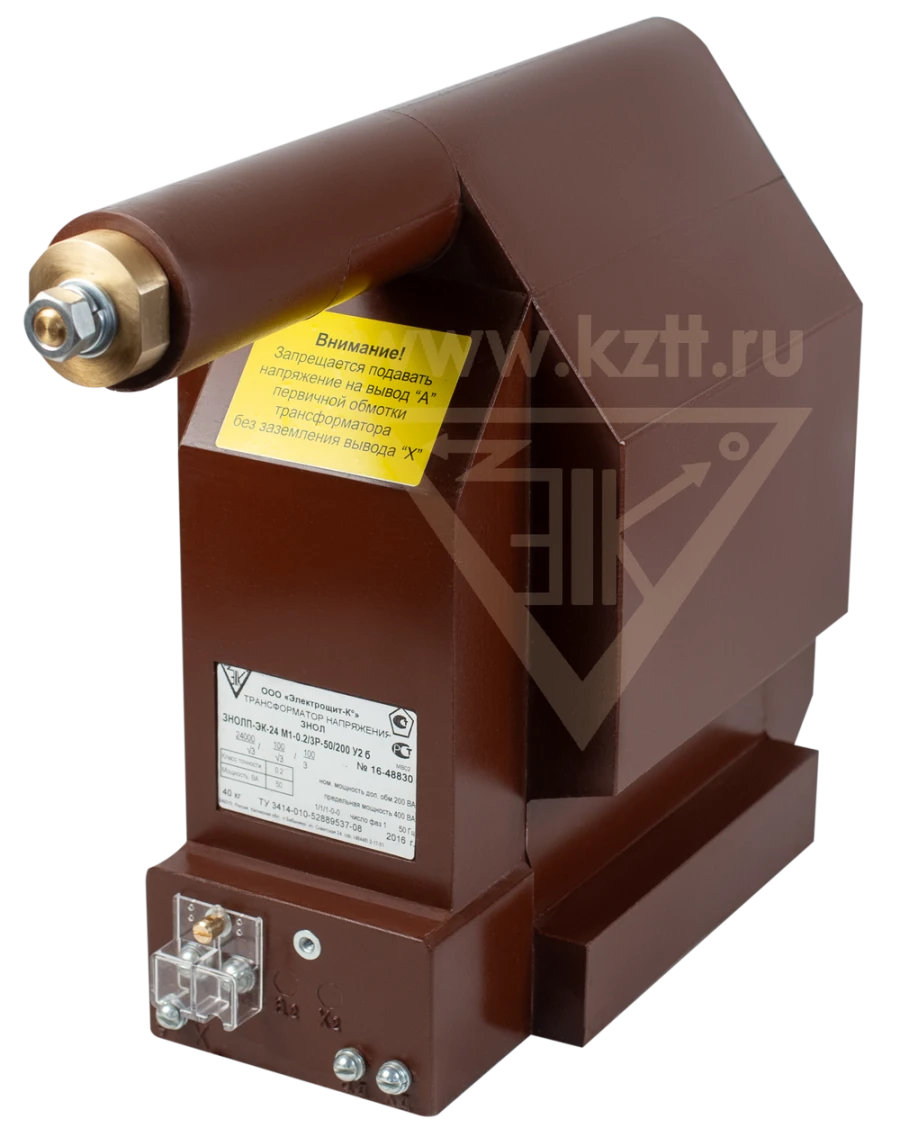

Grounded voltage transformer ZNOLP-EC M7

Earthed voltage transformers ZNOLP-EC M7 for voltage classes from 15 kV to 24 kV with cast insulation are designed for operation in power supply systems with isolated neutral, as well as with neutral grounded through an arc-extinguishing reactor or resistor, in measurement, protection, control, signalling circuits of alternating voltage, automation, control, signalling of alternating current of frequency 50 and 60 Hz, rated voltage 15-24 kV at electric power plants of all types, including nuclear power plants, as well as at electric substations of power systems, industrial and agricultural facilities, as well as for export.Voltage transformers are designed for wide application in complete switchgears of internal and external installation, CSR chambers, current conduits of generator voltage and auxiliary voltage of power stations and substations.Transformers ZNOLP-EC can be used for control of electric energy quality indicators (EQI).Climatic execution of transformers "U", "UHL", "U "T
