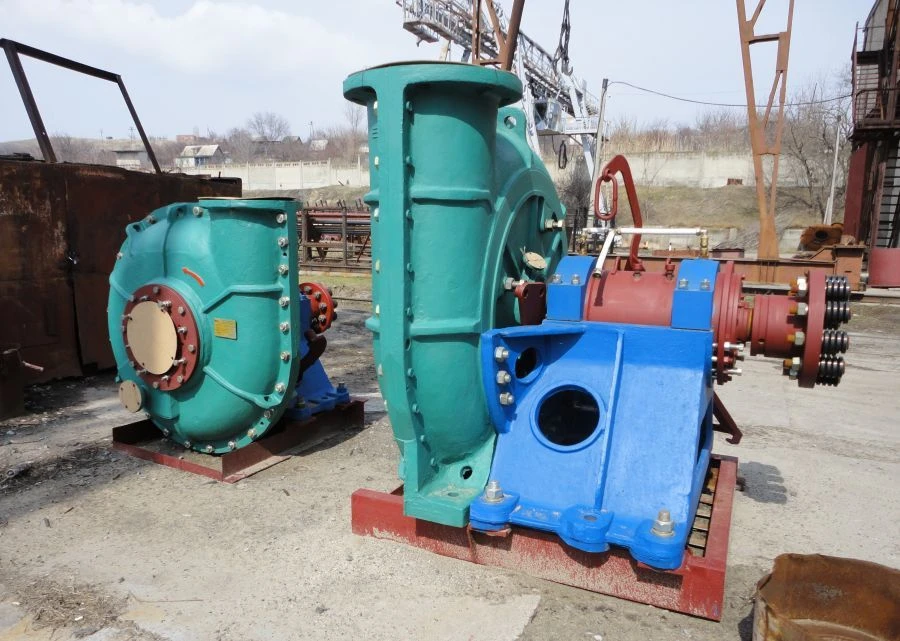

Ground pump GrUT 1600/45 project Ts424.00.00.00 SB

The ground pump 1600/45 with a delivery rate of 1600 m 3/h (444 l/s) and a head of 45 m, double-casing, horizontal, is designed to
pumping of hydro-mixture with hydrogen pH from 6 to 8, density up to 1400 kg/m 3, temperature 278 - 343 K (5 - 70 Å C), with
solid inclusions with volume concentration up to 15%, microhardness up to 9000 MPa, and can be operated on floating dredgers.
floating dredgers, floating mobile and stationary dredging stations.
The dredger is configured with the direction of the discharge pipe vertically upwards (other directions are possible upon agreement with the customer). Direction of rotation is right-handed (clockwise, determined from the drive side).
TECHNICAL DATA
Supply Q, m 3/h (l/s) - 1600 (444)
Head H, m±6% - 45
Rotational speed n, rpm (C -1 ) - 750 (12,5)
Efficiency factor, % not less than - 65
Pump drive power, kW, not less than 400
Size of flow path cross-section, mm not less than - 180
Pump weight, kg not more than - 3500
Working wheel dia...
