Glass-Textolite Insulator 270x80x2 mm Available for Import

Glass-Textolite Insulator 270x80x2 mm for Modular Electric Drives in Low-Floor Trams

Electrical Gear Parts
Manufacturer: ASK OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

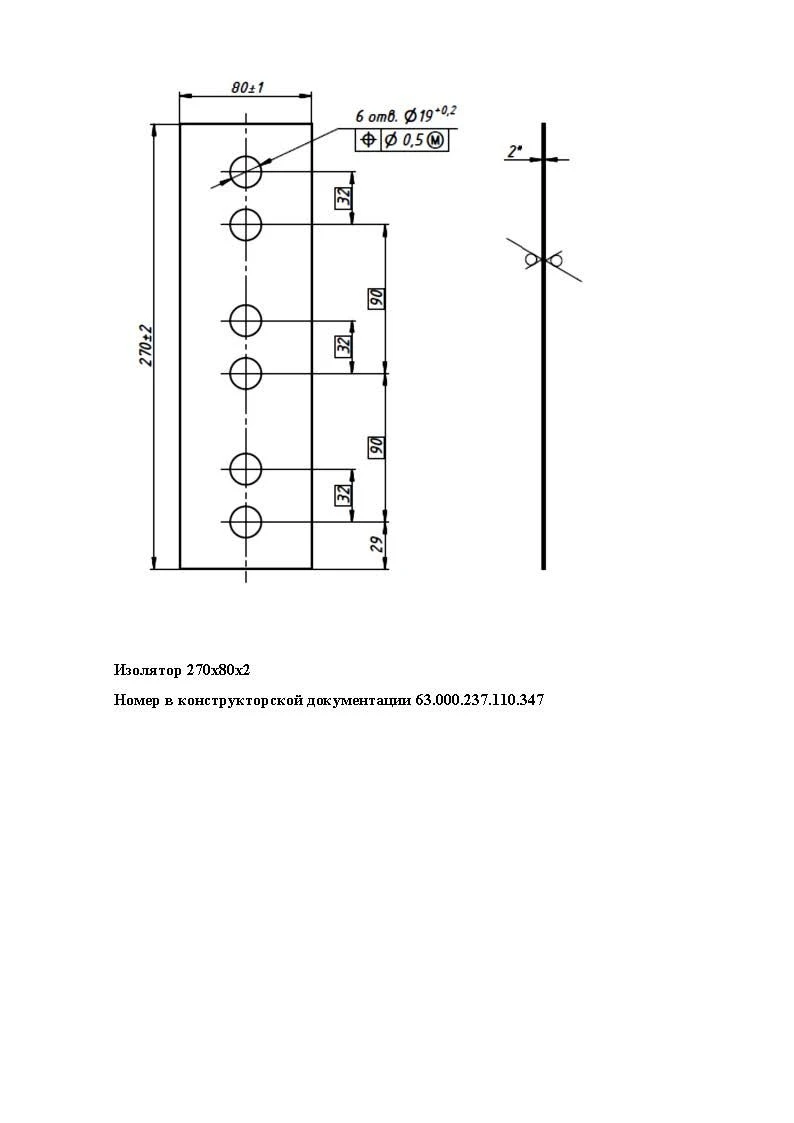

The insulator is intended for subsequent installation in the electric equipment cases of the traction electric drive of modular type for low-floor trams 63.000.237 and the traction electric drive of the third generation 63.000.216. in order to isolate the electric connection of separate elements of the electric equipment

Specifications

Assignment
Insulation of live parts
Material
Material glass-textolite
Size
270x80x2
Mark
Textolite insulator
Flammability class according to GOST 28157 (UL 94)
non-flammable
Connection size
According to the design documentation
Housing type
absent
Housing material
absent
Fixing element
Bolted connection
Thread
absent
Type of cover
absent
Cover material
absent
Purpose of the frame
absent
Type of product
Textolite product
Number of installation locations
6
Connection dimension for mounting in enclosure
According to the design documentation
Operating conditions
According to GOST 51321.1-2007

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
