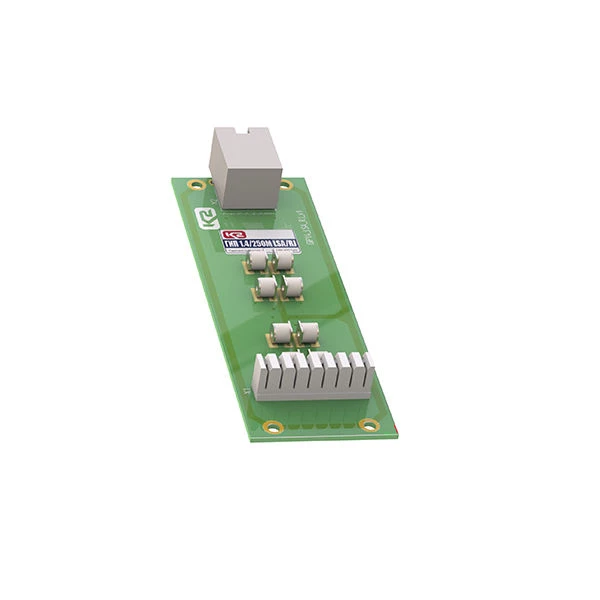

GIP 1.4/250M LSA/RJ (LT) surge protection device, cat.no.400 551.

USIP series GIP 1.4/250M */RJ (LT), TU 3428-002-79740390-2007 are designed to protect against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) equipment of structured cable networks of categories Cat.5e and Cat.6 with Ethernet interfaces of 1000BASE-T (IEEE 802.3ab-1999), 10GBase-T (IEEE 802.3an-2006) standards within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1. They are installed in rooms, cabinets, in 19-inch racks using specialised PSK 10 panels. They are produced for nominal operating voltage Uo= 6 V; nominal current IL= 1.5 A. Capable of carrying rated discharge current In(8/20) up to 3 kA. Data transfer rate 1/10 Gbit/s. Made in the form of a printed circuit board, IP20 when mounted in a panel.
