GNSS Geodetic Satellite Receiver STAN E800 Available for Import

GNSS Geodetic Satellite Receiver STAN E800 for Accurate Positioning

Surveying Instruments
Manufacturer: RUSGEOTORG LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

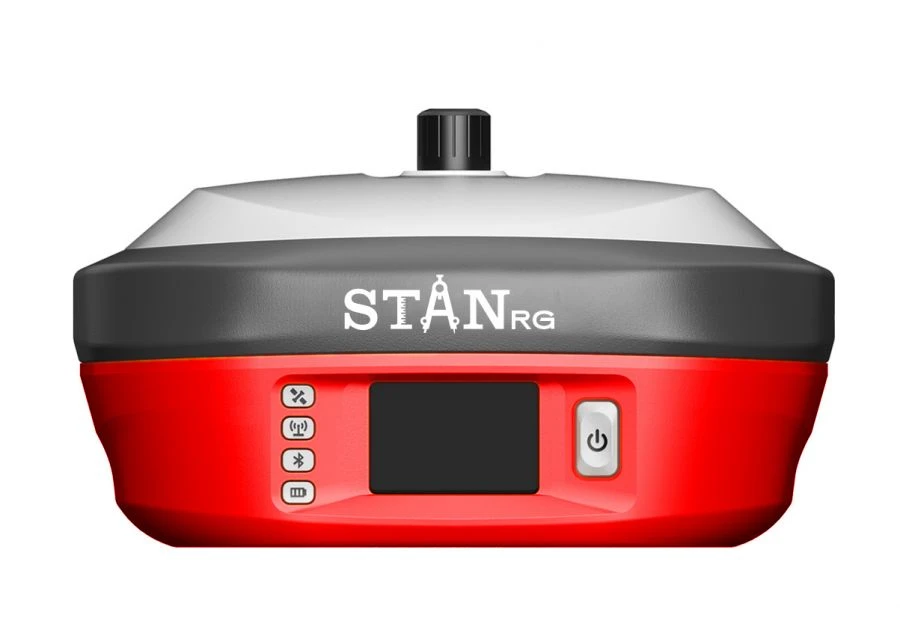

Geodetic satellite GNSS receiver STAN E800 (hereinafter - receiver) is designed to determine coordinate increments and geodetic determinations of the relative location of objects. The operating principle of the equipment is based on measuring the parameters of navigation signals of global navigation satellite systems (GNSS). The received broadband signal is converted, filtered, digitised and distributed to various channels.

Structurally, the receiver consists of the main parts: smart antenna and VHF antenna. The housing contains: Bluetooth® wireless technology module, data processing and storage module, control, indication and output module. Shooting data is stored in the internal memory.

Communication with external devices is carried out through COM and USB ports, as well as through the module of wireless data channel Bluetooth®, Wi-Fi. It is possible to connect an external power supply.

Specifications

Data output
GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary
Correction data
RTCM V3.X, RTCM2
Number of channels
1970 pcs
GPS
L1CA, L2P(Y), L2C, L5
BDS
B1I, B2I, B3I, B1C, B2a, B2b1
GLONASS
L1, L2
GALILEO
E1, E5a, E5b, E61
QZSS
L1, L2, L5, L61
SBAS
WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS
L-Band
B2b PPP
High precision statics
In-plane: 2.5 mm + 0.1 ppm (RMS)
Statics and fast statics
In plan: 3 mm + 0.5 ppm (RMS)
RTK accuracy
In plan: 5 mm + 0,5 ppm (RMS)
Location tolerance
In plan: 1,5 m (RMS)
Differential measurements
In plan: 0,4 m (RMS)
SBAS
In plan: 0.3 m (RMS)
Cold start
Less than 30 sec
Warm start
Less than 20 seconds
Hot Start
Less than 5 seconds
RTK signal initialisation
Less than 5 seconds
Reliability of initialisation
Over 99,9%
Refresh rate
20
Characteristics of the battery module
Li-ion battery, 7.2 V, 13600 mAh
Voltage
9...28 V
Operating time
Up to 15 hours
Charging time
5
Operating system
Linux
Built-in memory
32
Bluetooth
BT 5.0 + EDR, BLE
Wi-Fi
802.11a/b/g/n/ac
SIM card
Armoured glass
TNC
Connection of internal radio to antenna
Lemo 5-pin port
Connection to external radio and external power supply.
Type-C port
Charging and data transfer
WEB-?????????
Viewing status, firmware update, setting operating mode, data download, etc.
Voice prompts
Operating mode and broadcast state
MEMS
Quick initialisation, dynamic tilt shooting up to 60 degrees
Global network
4G
LTE FDD
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE TDD
B38, B39, B40, B41
UMTS
B1, B2, B4, B5, B6, B8, B19
GSM
B2, B3, B5, B8
Type
TX
Radiation power
5 W
Operating range
Up to 10 km under normal conditions
Frequency range
410...470
Distance between ducts
6.25
Protocol
Satel, PCC, TrimTalk, TrimMark III, TRANSEOT (PCC-GMSK), South, HiTarget, GEOTALK, GEOMK3, HZSZ
Dimensions
154 mm x 154 mm x 76 mm
Weight
1500 year
Operating temperature
-50...65 °C
Storage temperature
-40...80 °C
Dustproof
IP68
Shock resistance
Withstands free fall from a height of 1.2 metres
Vibration resistance
Armoured glass
Indicators
Satellite, data link, battery, Bluetooth
Button functions
Short press for operation mode and voice broadcast status
Screen
1.45 inch colour touch screen
Certificates
CE, FCC, NGS, IGS

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
