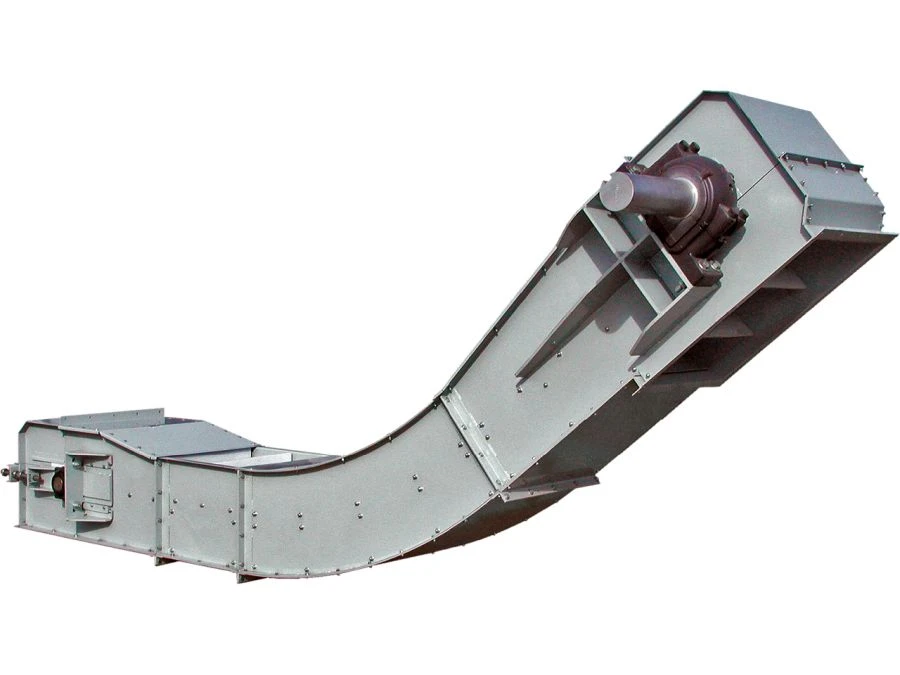

Gentle inclined scraper conveyor KSP200

Conveyor scraper hollow inclined is designed for inclined (30-60 degrees to the horizon) transport of grain and other bulk products at the objects of storage, processing and use of plant raw materials. Capacity 200 tonnes per hour for grain with volumetric mass 0,76t/m3. It is made of galvanised steel with thickness not less than 3mm, it is distinguished by increased wear resistance of the box, due to additional lining of walls. Due to the design features - has a high degree of maintainability. The set includes a backstop sensor, chain breakage sensor, drive, axial reducer (right/left version), screw tensioner of the drive, it is possible to complete with a polymer plate on the bottom of the conveyor, backfill and final backfill
