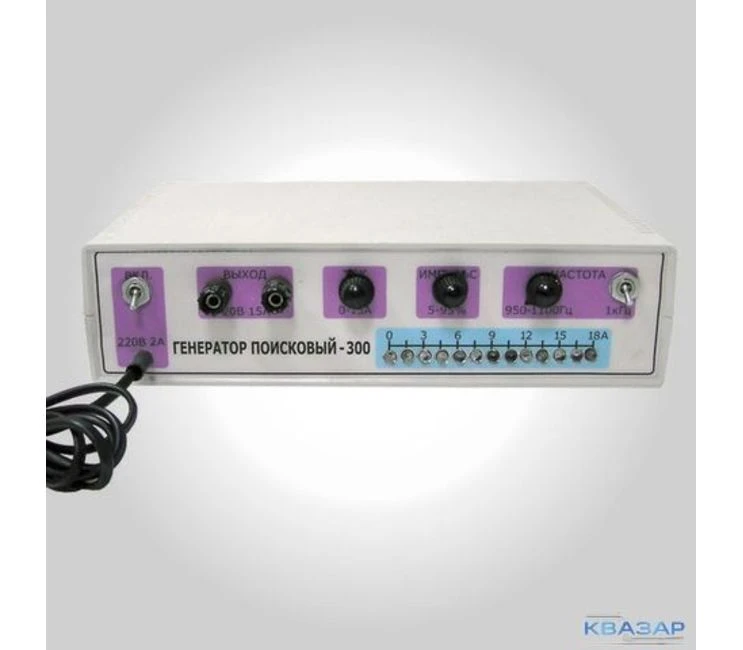

Generator GP-300

Generator search GP-300 is designed to form a powerful current signal of signalling frequency when determining the location of power cables or metal pipelines and allows you to produce a power of up to 300 W into the load for a long time. With the help of the signal generated by the generator, it is possible to determine the places of damage to the insulation of underground pipelines.

The traction generator GP 300 can be used with any trace detector receivers having frequency from 950 to 1100 Hz due to the possibility of smooth adjustment of the generator frequency.

The peculiarity of the generator is its portability and high efficiency, as well as the possibility of smooth and separate regulation of both pulse output power by the output current regulator, and average power by adjusting the value of filling the modulating pulse with a frequency of 1 Hz..
