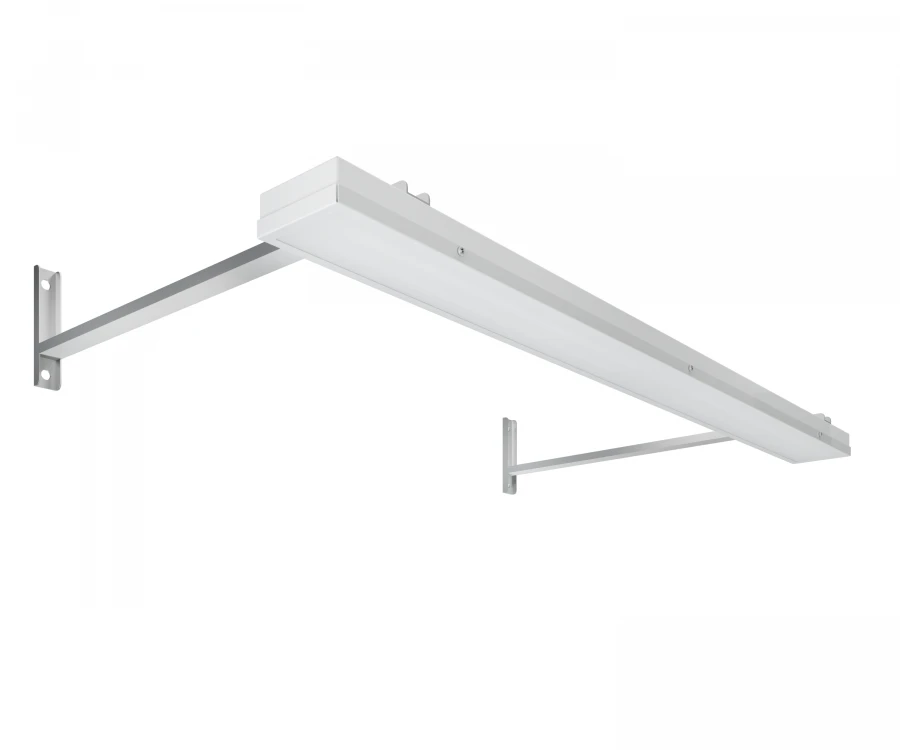

General Purpose LED Lighting Fixtures FS Series for Educational and Office Spaces

General purpose LED luminaires FS series are designed for general lighting of educational institutions, office and retail halls, lighting of school blackboards with mounting on brackets to the wall above the blackboard; different types of diffusers can be used; Models of LED luminaires of FS series:

1. Stationary LED luminaire FS 10

• - overall dimensions of the luminaire: (DxWxH) 1200x100x38 mm
• input voltage limit range - 176-264 V
• frequency - 50 Hz
• power factor > 0.95
• colour rendering index, CRI >90
• distribution class according to GOST R 54350 - P
• type of light intensity curve according to GOST R 54350 - G
• light flux ripple <1%
• luminaire service life - 105 000 hours
• protection class of the luminaire against environmental impact - IP40
• protection class against electric shock - 1
• operating temperature range - from -20°C to +40°C
• climatic design - UHL3.1
• housing material - steel;
• power - 20 V...
