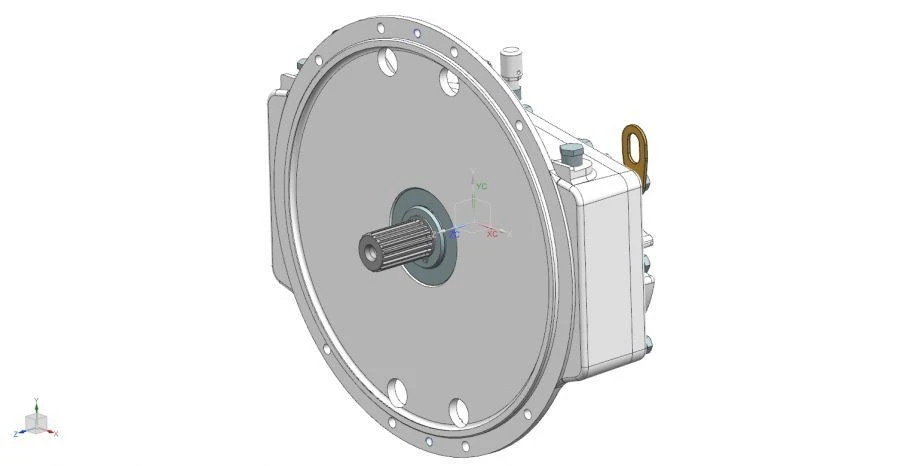

Gear Reducer RR307C43.42 for Efficient Drive of Hydraulic Pumps

The reducer is installed on the engine of special equipment (motor grader, bulldozer, etc.) with connection dimensions according to SAE 3 and serves for driving two hydraulic pumps with connection dimensions according to SAE C and SAE B. The gearbox consists of a housing, a primary shaft with external splines, two output shafts with internal splines, ball bearings on which the shafts are mounted in the housing, toothed gears mounted on the shafts. Torque is transmitted between the shafts and gears by means of keys.

Communication with the motor is carried out by means of a flexible coupling mounted on the splines of the primary shaft. The hydraulic pumps are mounted on the gearbox housing and driven by the output shafts, into the inner splines of which the pump shafts are inserted. The flexible coupling and the hydraulic pumps are not part of the gear unit.

The advantage of the gearbox is its compactness, which allows it to be used for a wide range of special-purpose machinery in limited layout space.
