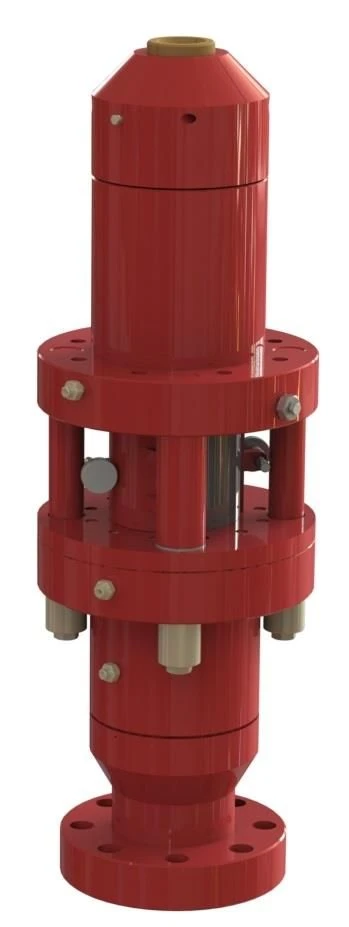

GDBT2-100x70-01-K2 Sealer for Long Pipe and Cable Systems

Special Purpose Equipment

Manufacturer:TSI LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

???????????? ????2-100?105-01-?2

Description

GDBT2-100x70-01-K2 sealer is designed for use as a part of a unit with a metal longitudinal coupless pipe or with a hose cable (polymer reinforced pipe), as a part of a set of devices for running and lifting longitudinal coupless pipes under pressure (as a part of coiled tubing units), in the process of development or repair of oil, gas, gas condensate wells.

Specifications

Weight

593 kg

Diameter

385 mm

Height

1330 mm

Test pressure of the hydraulic system

25 MPa

Working pressure in the hydraulic system

10 MPa

Number of sealing chambers

2 pcs

Maximum diameter of descending equipment and couplings on pipe

100 mm

Actual diameter of the through-hole for equipment and couplings to be lowered on the pipe

103 mm

Test pressure

105 MPa

Working pressure for sealing the pipe with the wellhead

70 MPa

Nominal bore diameter

100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
