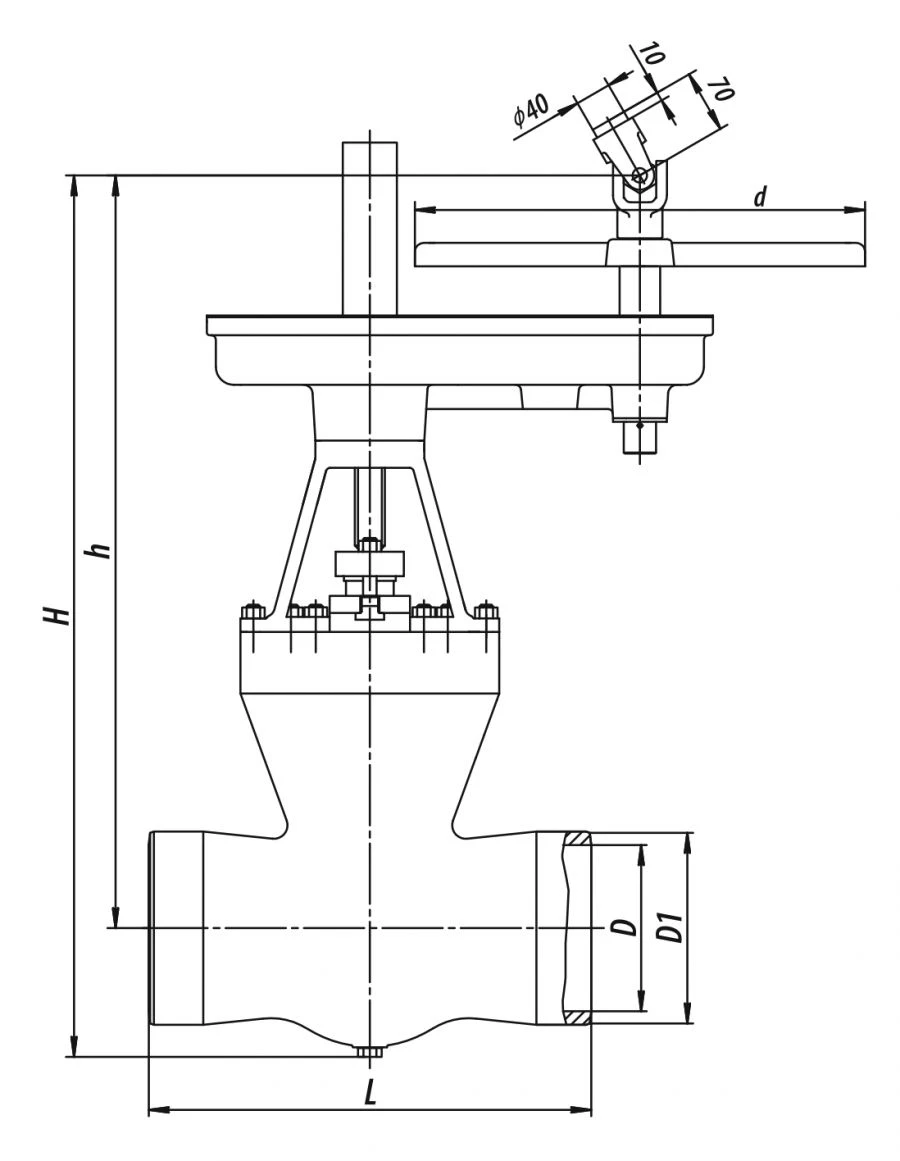

Gate Valve 2s-28-6 for Water and Steam Control Available for Import

Gate Valve 2s-28-6 for Secure Water and Steam Pipeline Control

Gate Valves
Manufacturer: BKZ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Gate valve 2s-26-1 Gate valve 2s-28-1 Gate valve 2s-28-3N Gate valve 2s-26-5N Gate valve 2s-28-4N

Description

Shut-off gate valves serve as devices for hermetic shut-off of water and steam pipelines of the main technological systems of stations and enterprises. They are used only for switching on or switching off the pipeline. Use of gate valves as regulating devices is not allowed.

Connection to the pipeline: under welding. Installation position on the pipeline: any. Direction of medium supply: any.

Gate tightness: according to class A of GOST 9544-2015. Placement category: 1, 2, 3 according to GOST 15150-69. Climatic execution: ?, ??, ???,?

according to GOST 15150-69.

Specifications

Operating medium
water-vapor
Diameter
400 mm
Pressure
10 MPa
Material
steel 25
Control method
via spur gearbox
