Gas meter SGT 16E-1600-K1,6

Gas Consumption Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Gas meter SGT 16E-1000-K0,6 Gas meter SGT 16E-4000-K0,6 Gas meter SGT 16E-250-K0,6 Gas meter SGT 16E-100-K1,6 Gas meter SGT 16E-650

Description

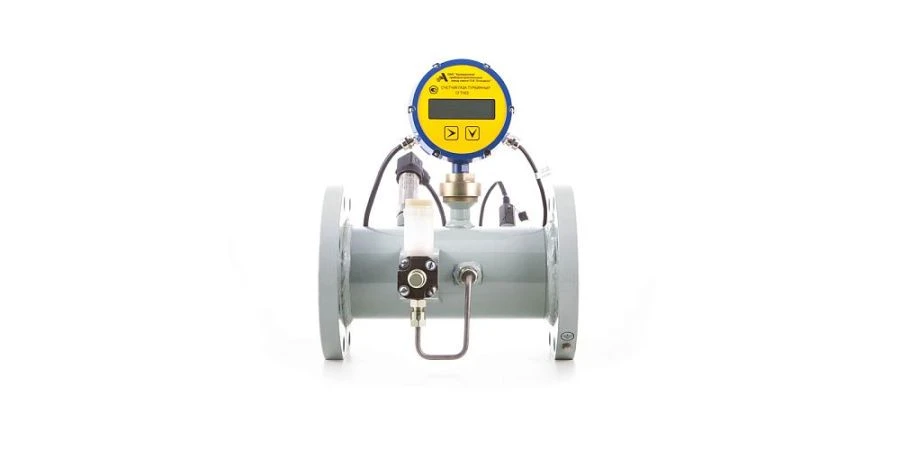

Turbine gas meter SGT 16E-1600-K1,6 (measuring range 1:50) is designed to measure temperature and pressure in order to convert the measured volume to the conditions according to GOST 2939-63. Field of application: accounting (including commercial operations) of gas volume, with smoothly changing flows, in installations of industrial and municipal enterprises, in pressure pipelines of gas distribution points and stations, heat and power plants and other technological facilities. The meter can be installed in explosion hazardous areas of class B-1b according to PUE "Rules for Electrical Installations" (Chapter 7.3). Interverification interval of the meter: 4 years. Service life of the meter: not less than 12 years.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Maximum pressure of the medium Up to 1.6 MPa

Ambient temperature range From -40 degrees Celsius to +60 degrees Celsius

Current consumed by the meter from the internal lithium cell Not more than 35 µA in "sleep" mode; not more than 35 mA in indication mode

Diameter of nominal passage (mm) 200

Maximum flow rate (m³/h) 1600

Minimum flow rate (m³/h) 32,5
