Gas heating blocks (GHB) ISTOK

Thermal Processing Units

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

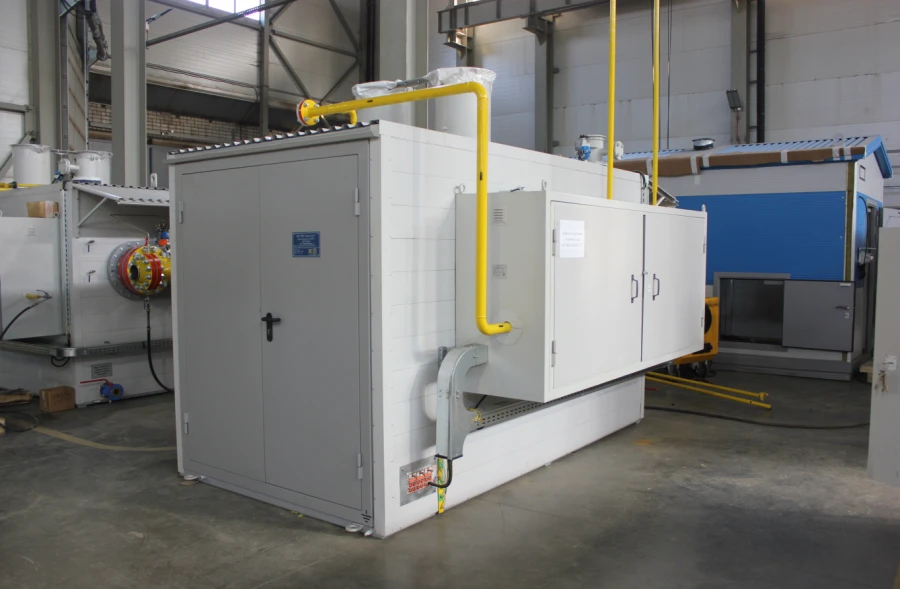

ISTOK gas heating unit (GHU) is designed for operation at gas distribution stations of PJSC Gazprom, in other technological systems of oil and gas industry and at enterprises of other industries.
To ensure the required performance of the heated gas flow rate above the nominal capacity of the GPU "ISTOK" is allowed to use a bypass gas mixing line together with the GPU.
To ensure the required thermal capacity above the nominal thermal capacity of the ISTOK GPU, it is allowed to combine several standard ISTOK Gas Heating Units (GHU) into a single ISTOK GPU Module.
Gas Heating Unit (GHU) "ISTOK" refers to gas heaters with intermediate coolant, operating on low-light technology without the constant presence of service personnel.

Technical Specifications

Rated heat output	100...800 kW
Working pressure of heated gas at heater inlet, not more than	10 MPa
Nominal flow rate of heated gas	5000-60000 nm³/h
Gas temperature at the inlet to the preheater	-20...30 °C
Fuel gas pressure upstream of the burner device	1.5...11
Nominal flow rate of fuel gas, max.	11-88 nm³/h
Degree of gas heating maximum, ?t	30...40 °C
Efficiency at rated mode, not less than	Flat grinder, Specialised grinder %
Maximum operating pressure of the heating medium	0.3 MPa
Temperature of the heat transfer medium at the outlet of the heat generator	95 °C
Температура теплоносителя на входе в теплогенератор	60...75 °C
Temperature of exhaust flue gases, not less than	120 °C
Noise level at a distance of 1 metre from the GPU, not more	80

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
