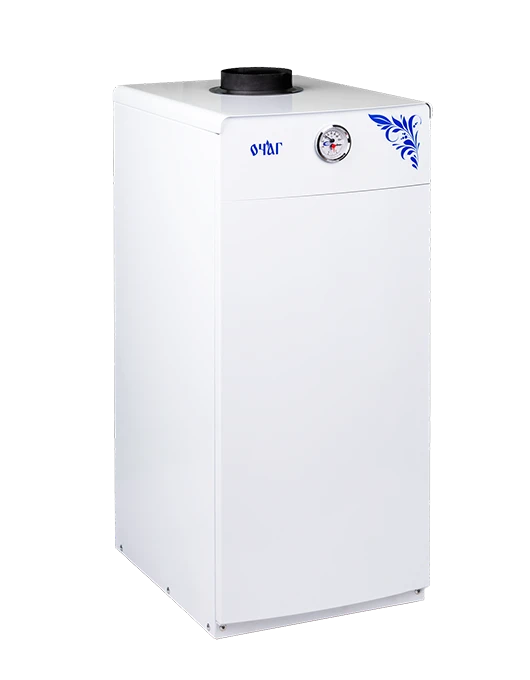

Gas Heating Apparatus AOGV-8EH "Ochak" for Efficient Home Heating

A heating gas apparatus AOGV-8EH "Ochag" is manufactured in accordance with TU 4858-003-25331063-2014. The apparatus is designed for heating of residential buildings equipped with a water heating system with a working pressure of the coolant up to 0.3 MPa (3.0 kGs/cm) and temperature up to 95C with forced or gravity (natural) circulation of the coolant with automatic maintenance of the set temperature of the coolant. Approximate heated area of 80 sq.

m.; Power: 8 kW; Efficiency not less than 92%; Control: mechanical; Burner own production SABK; Gas automation 820 NOVAmV; Energy-independent; Type of heat exchanger: Cylindrical shape, heat-tube with screw turbulators; Heat exchanger material: steel, wall thickness of the heat exchanger 3 mm; Chimney diameter: 100 mm.
