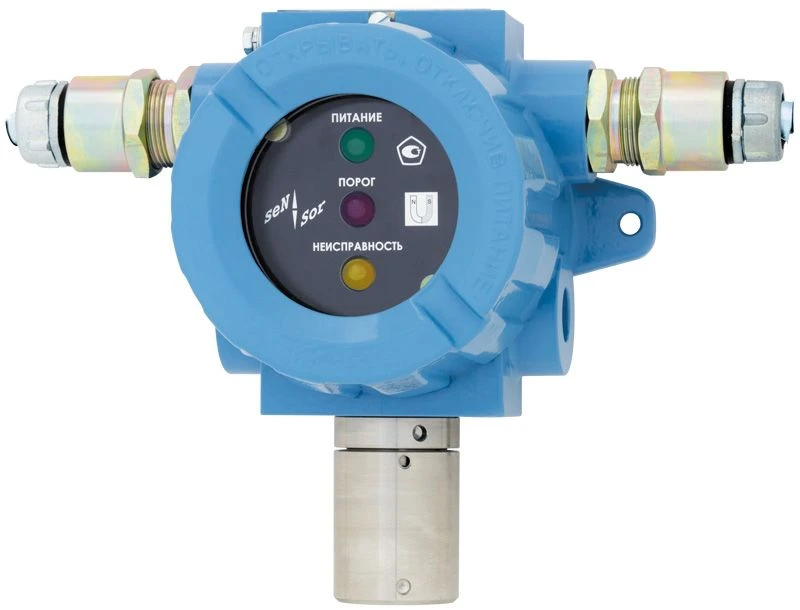

Gas analyser SENS SG-A1

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

SENS SG-A1 gas alarm device is designed for continuous automatic measurement of pre-explosion concentration of combustible gases and vapours, including oil product vapours in the ambient atmosphere.

It is used in modern systems of control of gases at objects of civil construction, chemical and petrochemical industry, in mechanical engineering and shipbuilding.

Main objects of operation: petrol stations, filling stations, gas filling stations, motor fuelling stations, compressor stations, gas filling stations, oil depots, gas storages, gas stations, refineries, etc.

Features:
- three built-in alarm relays
- vandal resistant aluminium alloy housing
- easy application and commissioning
- transit connection
- optical sensor resistant to high concentrations and aggressive and toxic substances
- continuous self-diagnosis
- local LED indication
- wide range of interfaces: SENS power line (SENS protocol); RS-485 (Modbus RTU protocol); 4-20 mA (HART Revision 6 protocol)
- five configurable thresholds
- bo...

Specifications

Measuring range, % NCPr 0 to 100

Detectable gases methane, propane, butane, hexane

Verification gases methane, propane

Inspection interval 24

Time to establish readings (T90), not more than 60

Warm-up time, max. 120

Absolute error tolerance limits, % NCPR, not more than ±3

Rated supply voltage (DC) B1/B8 2100/900 MHz V

Permissible supply voltage (DC) 4.5 to 30 V

Power consumption, max. 2.5 W

Interfaces (Protocols) SENS power communication line (SENS protocol), RS-485 (SENS protocols, Modbus RTU), 4-20 mA (HART protocol)

Maximum switched DC / AC voltage of signalling relays 42 / 30 V

Maximum commutated current of signalling relays 0.5 A

Number of configurable alarm thresholds 5 pc

Diameter of connecting cable without armour 5...18 mm

Maximum cross-section of conductors to be connected, max. 2.5 mm2

Materials in contact with the environment Aluminium alloy AK7h (AL9), steel 20, steel 12?18?10?, steel 14?17?2, steel AISI 431

Climatic execution according to GOST 15150 UHL1

Temperature of operation, storage, transportation from -40 to +60; from -60 to +60 °C

Degree of protection according to GOST 14254 IP66

Explosion protection marking 1 Ex d IIB T4 Gb

Overall dimensions W × H × D, not more 240×240×170 mm

Gross / net weight, max. 3 / 2.5 kg

Service life of sensitive element (sensor) 8 a

Service life 15 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
