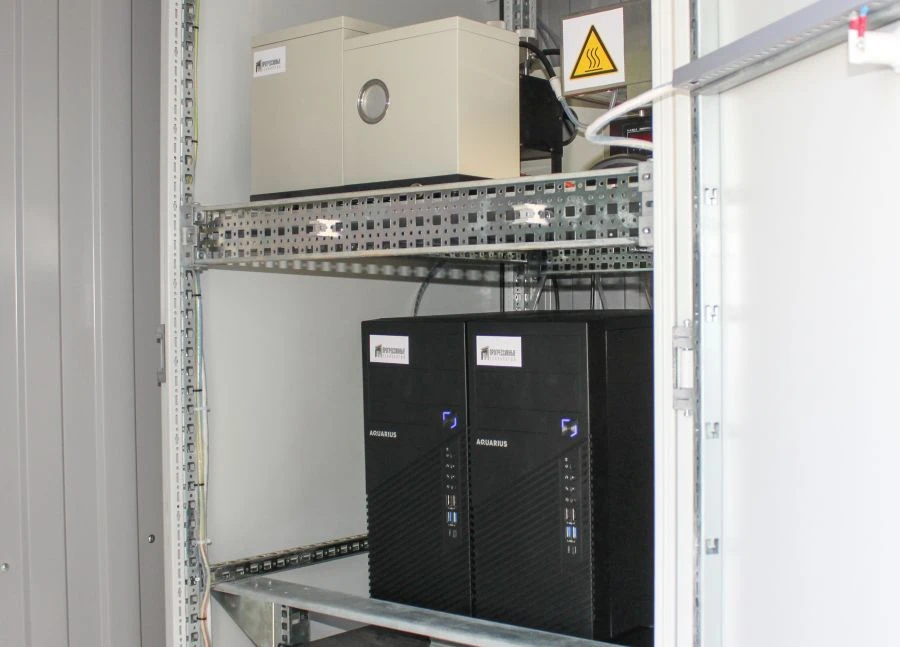

Gas analyser PT 2020-N

The software is a complex of functionally united hardware and software that performs automatic, continuous, round-the-clock, simultaneous measurement of the concentration of ammonia (NH3), nitrogen oxide (NO), nitrogen dioxide (NO2), sulfur dioxide (SO2), carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), hydrogen fluoride (HF), in various combinations.
The principle of operation is based on selective absorption of infrared radiation by molecules in the analytical areas of the spectrum. Analytical signals of measurement channels are converted according to a special algorithm and displayed in units of measured values on the display.
The software has the state registration of the program for computer ? RU 2022610441 from 12.01.2022 and provides the choice of measured gases and periodicity of measurements.
