Garbage truck KM-7028-56 on chassis MAZ 5N32 of modifications 5340C2, MAZ 534025

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

body of a rubbish truck with rear loading device, for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, their compaction, transportation and mechanised unloading in the places of neutralisation and disposal

Technical Specifications

Engine type	Four-stroke diesel engine
Type of product according to PP RF 616	Garbage trucks
Hopper capacity	14...18
MSW compression ratio for the garbage truck	Up to 10
Engine type	Four-stroke diesel engine
Type of garbage truck equipment	rear-loading garbage truck
Wheel arrangement	4x2/rear
Wheel arrangement	4 x 2 / rear
Hopper capacity	14...18
Base chassis type	MAZ 5N32
Machine type	7028
Neutralizers (marking) - 1 stage	muffler
Silencers (marking) - 1 stage	ROSSKATavto (RKa), Dinex Rus (DINEKS), MobilGasService (MGS), 5365.1201010-? (5365-1201010-??)
Particulate filter	-
Transmission	mechanical
Clutch (brand, type)	Sachs, Donmez, MF-395, MFZ-430 or YAMZ-183, 184, friction, dry, single disk
Transmission (make, type)	EATON, E????? 09; ZF, 9S??????; Shaanxi Fast Gear Co., 9JS???? or 9JS????? or 9JS?????? or 9JS???????; YAMZ, 239; manually controlled
Clutch (brand, type)	Sachs, Donmez, MF-395, MFZ-430 or YAMZ-183, 184, friction, dry, single disk
Transmission (make, type)	Shaanxi Fast Gear Co.,12JS???? or 12JS????? or 12JS?????? or 12JS???????; manually operated.
Nozzles (type, marking)	Bosch, WPCRIN2
Compression ratio	17.5

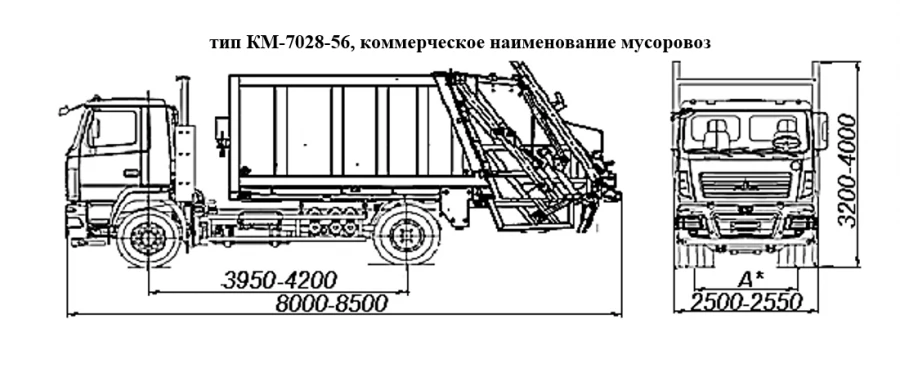

Vehicle length	8000...8500 mm
Vehicle width	2500...2550 mm
Vehicle height	3200...4000 mm
Base	3950…4200 mm
Front/rear wheel track	2020…2070 / 1790…1840 mm
Vehicle kerb weight	11600…11750 kg
Technically permissible maximum mass of the vehicle	19000 or 20500 kg
Technically permissible maximum mass on each axle of the vehicle	7500 kg
Technically permissible maximum mass on each axle of the vehicle	11500 or 13,000 kg
Maximum trailer weight	trailer towing is not provided kg
Internal combustion engine (make, type)	WEICHAI / MAZ-WEICHAI, WP7.270E51 four-stroke diesel engine with turbocharging and intercooling of air
Number and arrangement of cylinders	6, inline
Working volume of cylinders	7470
Maximum power kW (min-1)*	194 (2100)
Maximum torque, N?m (min-1)	1160 (1200… 1600)
Fuel	diesel fuel
Power supply system (type)	pressurized fuel injection
Control unit (marking)	Bosch, WPEDC7
Fuel injector (type, marking)	Bosch, WPCPN2
Air blower (type, marking)	Honeywell, GT35
Air filter (type, marking)	MAZ, Remiz, 238N-1109010 (-???)
Exhaust gas exhaust and neutralization system	with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system
Neutralizers (marking) - 1 stage	muffler
Silencers (marking) - 1 stage	Weichai, WPSCR-002 (610800220???)
Internal combustion engine (make, type)	YaMZ, 53653; turbocharged four-stroke diesel engine with intermediate air cooling
Number and arrangement of cylinders	6, inline
Cylinder displacement	6650
Maximum power, kW (min-1)*	175 (2300)
Maximum torque, N?m (min-1)	1044 (1300…1600)
Fuel	diesel fuel
Power supply system (type)	pressurized fuel injection
Control unit (marking)	Bosch, EDC7UC31, 0 281 020 111
Fuel injector (type, marking)	Bosch, CR/CP3HS3/L110/30-789S, 0 445 020 110
Nozzles (type, marking)	Bosch, 0 445 120 178
Air blower (type, marking)	NPO "Turbotechnika", TKR 80
Air filter (type, marking)	MAZ, Remiz or YaMZ, Remiz, 238H-1109010(-???) or 8421-1109010 (-??)
Exhaust gas exhaust and neutralization system	with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system
Front suspension (description)	dependent, spring-loaded, with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Rear suspension (description)	dependent, spring-loaded, with or without hydraulic telescopic shock absorbers, with or without transverse stability stabilizer or dependent, pneumatic with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Steering (description)	Power assisted
Steering mechanism (type)	steering mechanism of "screw-ball nut-rail-sector" type; MAZ, 6422?-3400????? (-???) or SNKF, 453461.7?0(-??) or ZF, 8099 955 ??? or HEMA: 8098 955 ???? (HD098C55 ????), HD099C55 ??? or RBL, C-700V 717 (-????)
Brake systems Working (description)	dual-circuit, pneumatically actuated, axle-separated, ABS, with or without ESP (ESC) stability system; all wheel brakes - drum or disc.
Brake systems Spare (description)	any of the service brake circuits or the parking brake system
Braking systems Parking (description)	drive from energy accumulators to rear axle wheel brakes
Brake systems Auxiliary (wear resistant) (description)	gas dynamic brake installed in the engine exhaust system; retarder or compression braking may be fitted.
Vehicle equipment	optional emergency services call device: autonomous cabin heater, engine preheater, air conditioner, electric door locks, antenna, tachograph, satellite navigation equipment, special warning lights

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
