Garbage truck BM-7028-73 on KAMAZ 65115 chassis in 65115-A5, 65115-50, 65115-RR, 65115-RS modifications.

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

body of a rubbish truck with rear loading device, for collection of solid domestic waste (MSW) from containers, as well as manual collection of MSW, their compaction, transportation and mechanised unloading in places of neutralisation and disposal

Specifications

Type of product according to PP RF 616 Garbage trucks

Base chassis type KAMAZ 65115

Hopper capacity 18...22

Wheel arrangement 6x4 / rear bogie

Engine type 4-stroke, diesel

Base chassis type KAMAZ 65115

Hopper capacity 18...22

Wheel arrangement 6x4/rear wagon

Engine type Four-stroke diesel engine

Wheel arrangement 6x4/ rear bogie

Engine type Four-stroke diesel engine

Hopper capacity 18...22

Engine type Four-stroke diesel engine

Wheel arrangement 6x4 / rear bogie

Hopper capacity 18...22

Base chassis type KAMAZ 65115

Technically permissible maximum mass of a road train Trailer towing not provided for kg

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle 7150–9500 kg

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle 5600–6200 kg

Vehicle kerb weight 14240–15230 kg

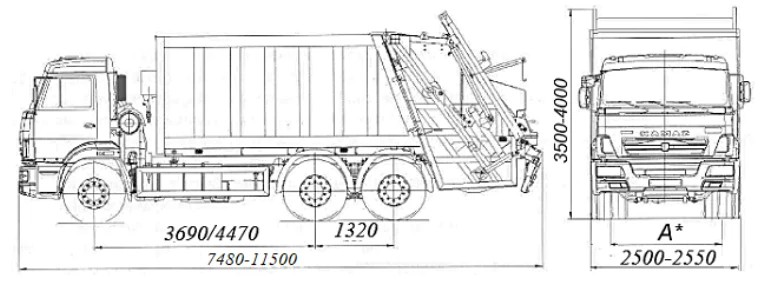

Front / rear wheel track 2043/1890 mm

Base 3690/4470 + 1320 mm

Vehicle height 3500–4000 mm

Vehicle width 2500–2550 mm

Vehicle length 7500–11500 mm

Type 7028(65115)

Machine type 7028 (65115)

Type of garbage truck equipment garbage truck body with rear loading device

MSW compression ratio for the garbage truck Up to 10

Cylinder displacement 6700

Gearbox(make,type) KAMAZ,144;KAMAZ,154;ZF9S1310TO,ZF9S1315TO;ZF 16S1820TO;ZF 16S1821TO;ZF 16S1822TO;ZF 16S1825TO;ZF 16S2220TO; with manual control.

Vehicle equipment Maximum speed limiter (the function of the maximum speed limiter is performed by the electronic engine control unit); emergency call centre with automatic overturning function.

Brake systems retarder

Brake systems drive from spring energy accumulators to brakes of rear bogie wheels

Brake systems each service brake system circuit

Brake systems Pneumatic double-circuit pneumatic drive, split into circuits for front axle and rear bogie, with ABS, drum brakes on all wheels.

Steering mechanism (type) "screw - ball nut - rail - sector"

Steering (description) Power assisted

Rear suspension (description) dependent, balanced, spring-type, with one transverse stability stabiliser (for vehicles on chassis 6520-??); dependent, balanced, on two semi-elliptic springs (for vehicles on chassis KAMAZ-65115-??).

Front suspension (description) dependent, leaf spring, with hydraulic telescopic shock absorbers, with transverse stability stabiliser (for vehicles on chassis 6520-??); dependent, on two semi-elliptic or parabolic leaf springs, with hydraulic shock absorbers, with or without stabiliser

Clutch (brand, type) ZF&SACHS or DÖNMEZ or Changchun Yidong Clutch, MFZ-430 or Prawolf (Huzhou) Clutch Co., Ltd. or OOO "Ledov-RAM", Lyodov-RAM dry, single disc, or KAMAZ-142, dry, double disc.

Transmission mechanical

Silencers (markings) A053M298

Neutralizers (markings) integrated with the silencer

Exhaust gas exhaust and neutralisation system One silencer, exhaust gas neutralisation system

Intake silencers (marking) the air filter acts as an intake silencer

Air filter (type, marking) Autoaggregate, FV725.1109510 or FV728.1109510

Air blower (type, marking) Holset, HE400WG

Nozzles (type, marking) BOSCH, 0445

Fuel injector (type, marking) Cummins, CCR 1600

Control unit (marking) Cummins, CM2880

Power supply system (type) Common Rail, direct fuel injection with common ramp

Fuel diesel fuel

Maximum torque, N?m (min-1) 1532 (1400)

Maximum torque, N?m (min-1) 1482 (1400)

Maximum power, kW (min-1) 258(2100)

Maximum power, kW (min-1) 245(2100)

Compression ratio 16.6±0.3

Cylinder displacement 8880

Number and arrangement of cylinders 6, inline

Internal combustion engine (make, type) Cummins, ISL360 50, four-stroke diesel engine

Internal combustion engine (make, type) Cummins, ISL340 50, four-stroke diesel engine

Silencers (markings) DINEX, 59389, 59394 or TechnoCom, 14???5490-1206010-02

Neutralizers (markings) integrated with the silencer

Exhaust gas exhaust and neutralization system one muffler with integrated exhaust gas neutraliser

Intake silencers (marking) функцию глушителя шума впуска выполняет воздушный фильтр

Air filter (type, marking) Avtoagregat, FV725.1109510-10 or MANN+HUMMEL, Europiclon 45 700 92 941

Air blower (type, marking) Borg Warner Turbo Systems, S300G or Holset HE400WG, Cummins Turbo Technologies or Kangyue Technology, JP100K or CZ, C31

Nozzles (type, marking) BOSCH, CRIN 2 (0 445 120 153)

Fuel injector (type, marking) BOSCH, SR3.4 (0 445 020 089)

Control unit (marking) BOSCH, EDC7UC31-14J0

Technically permissible maximum mass of the vehicle 19900–25200 kg

Power supply system (type) Common Rail, direct fuel injection with common ramp

Fuel diesel fuel

Maximum torque, N?m (min-1) 1275 (1300)

Maximum power, kW (min-1) 221(1900)

Compression ratio 18,0±0,4

Cylinder displacement 11762

Number and arrangement of cylinders 8, V-shaped

Internal combustion engine (make, type) KAMAZ 740.705-300 four-stroke diesel engine

Silencers (markings) Cummins, 4378057 (A051K628), Cummins, 4378042 (A051E058)

Neutralizers (markings) integrated with the silencer

Exhaust gas exhaust and neutralization system one muffler with integrated exhaust gas neutraliser

Intake silencers (marking) функцию глушителя шума впуска выполняет воздушный фильтр

Air filter (type, marking) Autogregat, FV728.1109510-10 or Europicon 45 700 92 941 (MANN+HUMMEL)

Air blower (type, marking) Holset HE351W

Nozzles (type, marking) BOSCH, CRIN2 (0 445 120 329)

Fuel injector (type, marking) BOSCH, CR/CP3S3/L110

Control unit (marking) Cummins, CM2880

Power supply system (type) Common Rail, direct fuel injection with common ramp

Fuel diesel fuel

Maximum torque, N?m (min-1) 1087 (1300)

Maximum power, kW (min-1) 215(2500)

Compression ratio 17,3±0,3

Number and arrangement of cylinders 6, inline

Internal combustion engine (make, type) Cummins ISB6.7E5300, four-stroke diesel engine

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
