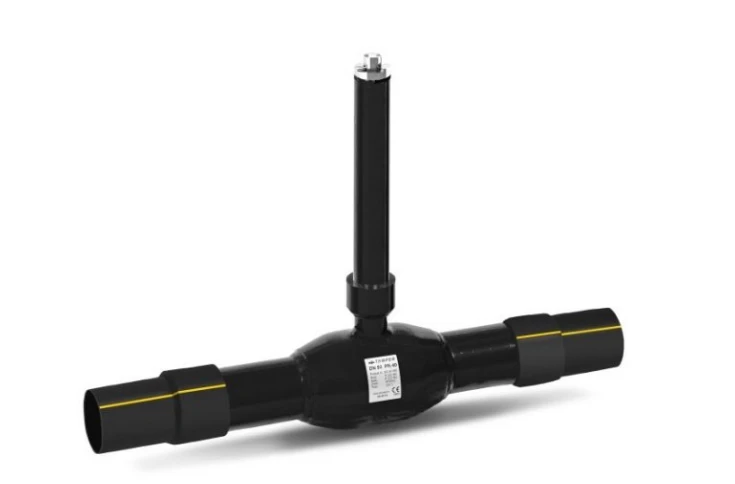

Full-Bore Ball Valve with Extended Stem for PE Pipe: Model 59220300
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220250.
Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220040.
Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220050.
Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220400.
Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200
Description
Connection type:
welded/welded
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
welded/welded
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
300 mm
Nominal pressure
25 MPa
Construction length
2750 mm
Connection type
with PE tubing
Aisle
complete
Flange for mounting the actuator
without flange
Execution
underground
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
40
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
