Available for Import

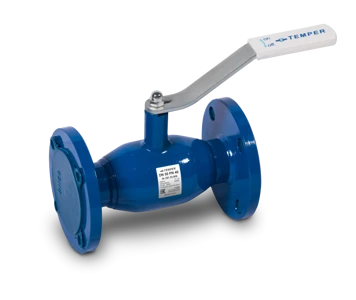

Full bore ball valve 293 flanged, 29320020

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Full bore 293 flanged ball valve, 29320065 Full bore ball valve 293 flanged, 29320020 Full bore 293 flanged ball valve, 29320032 Full bore 293 flanged ball valve, 29320025 Standard bore 283 flanged ball valve, 28320065

Description

Connection type:

flanged

Work Environment:

heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials of valve parts

Specifications

Airtightness class Class "A" GOST R54808-2011

Diameter 20 mm

Nominal pressure 40 MPa

Construction length 150 mm

Weight 2.45

Connection type Flanged

Aisle complete

Flange for mounting the actuator without flange

Execution ordinary

Enclosure materials Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to -40 °C

Maximum temperature, up to 200 °C

Service life, at least 25 a

Warranty period 3 a

Warranty period, cycles 10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
