Available for Import

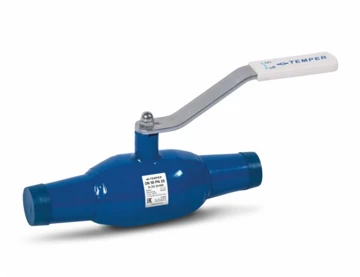

Full bore 292 welded ball valve, 29220020

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Full bore 292 welded ball valve, 29220065

Description

Connection type:

welded/welded

Work Environment:

Heat network water, oil products, petroleum products, fuels and lubricants, gaseous and other working media, not aggressive for materials of valve parts.

Specifications

Airtightness class Class "A" GOST R54808-2011

Diameter 20 mm

Nominal pressure 40 MPa

Construction length 230 mm

Weight 1.1

Connection type Welded

Aisle complete

Flange for mounting the actuator without flange

Execution ordinary

Enclosure materials Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to -40 °C

Maximum temperature, up to 200 °C

Service life, at least 25 a

Warranty period 3 a

Warranty period, cycles 10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
