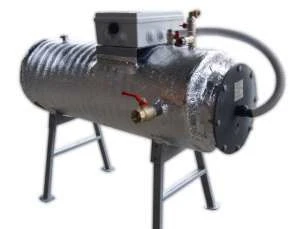

Fuel preparation module for liquid fuel burners, boiler houses (flow heater explosion-proof one-section)

The heater is used in housing and utilities, boiler houses, etc. for preheating of fuel, oil and oil products, filtration of fuel used by burners of boiler houses and other equipment, which significantly increases the service life of equipment, reducing the cost of its maintenance and spare parts. Built-in fuel heating regulator allows to work in autonomous mode on the set parameters. Included in the station mesh filter does not require replaceable elements! Easy installation and connection to the mains!... Request a questionnaire and we will select the equipment individually for you.... Technical specifications in the basic configuration:. Tank volume 70 litres. Fuel consumption 260l/hour. Power consumption 12kW..... Degree of filtration 100 microns..... Fuel heating regulation range 0-80C..... Power supply voltage 220V/50Hz. Fuel for combustion Petroleum. Type of filter is mesh. Design Horizontal/vertical. Connection threads (in, out, air, etc.) 3/4, 1/2,1, 1 1/2 inches.
