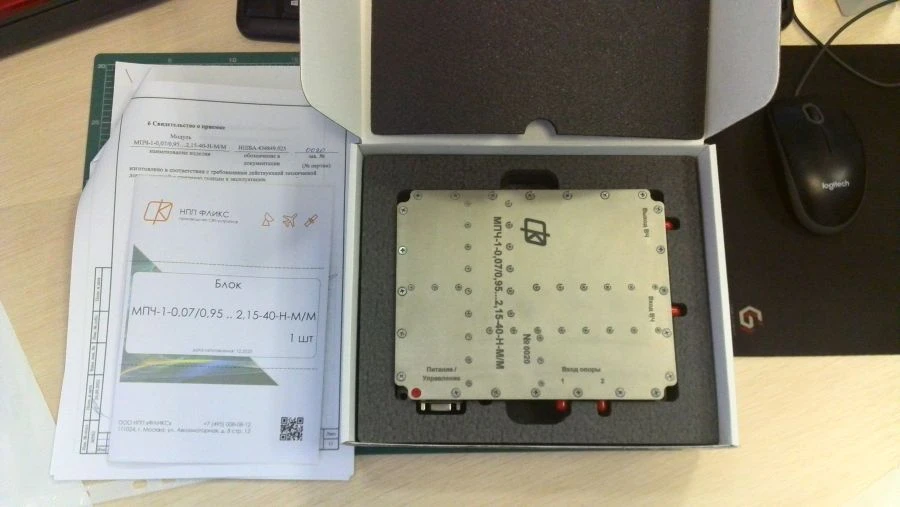

Frequency Transfer Module MПЧ-1-0.07/0.95...2.15-40-N-M/M for Efficient Signal Processing
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to transfer the frequency spectrum from 70 MHz to the L band with a controlled transfer frequency, with an end-to-end signal amplification of 10 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 40 MHz.
Specifications
Input/output VSWR (max.)
1.7
Remote monitoring and control
Got it
Weight (max.)
1500 year
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Power consumption (max.)
8 W
Power supply voltage
12...24 V
Frequency of the external reference oscillator
10
Inversion of the signal spectrum
Switchable via control program
Mirror channel suppression (dBn, not less)
80
Heterodyne frequency attenuation (dBn, not less)
80
1dB compression point output power (OP1dB, at least)
0.001 W
Noise figure (max.)
10
Frequency response irregularity (max.)
2
Transmission coefficient (at least)
9
Input frequency - range
50...90
Output frequency - range
950...2150
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
