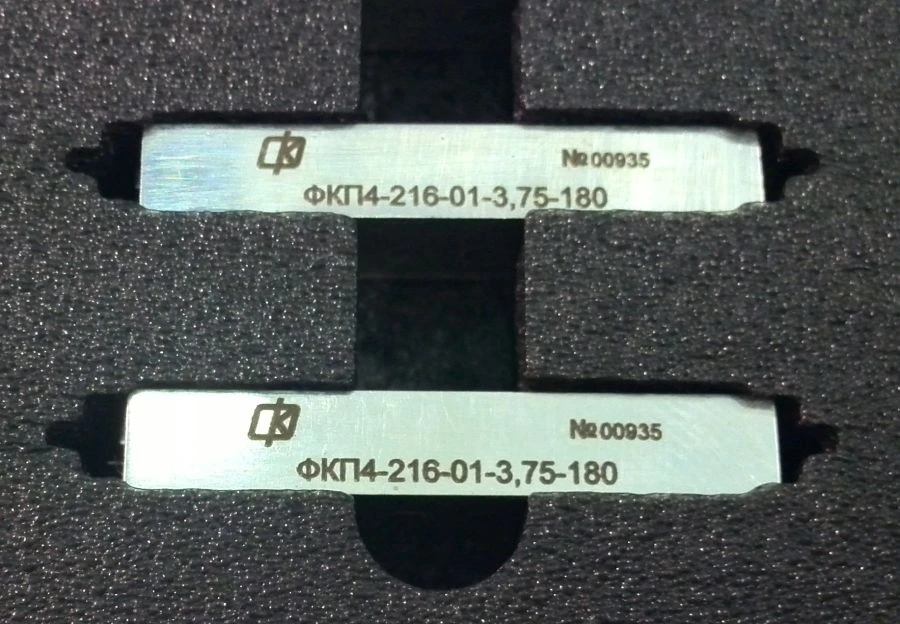

Bandpass RF Filter FKP4-216-01-3.75-180 for Enhanced Signal Quality

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 6th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-size parameters of the filter. The product is designed for operation in the UHF range and provides a bandwidth of 180 MHz relative to the centre frequency of 3750 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3660 to 3835 MHz

1.4

Guaranteed attenuation (upper band 4020 to 6500 MHz)

Guaranteed attenuation (lower band 3400 to 3565 MHz)

Maximum insertion attenuation at center frequency

1.7

30 dB level bandwidth

310...340

Bandwidth at 1 dB level

178...196

Center frequency

3749
