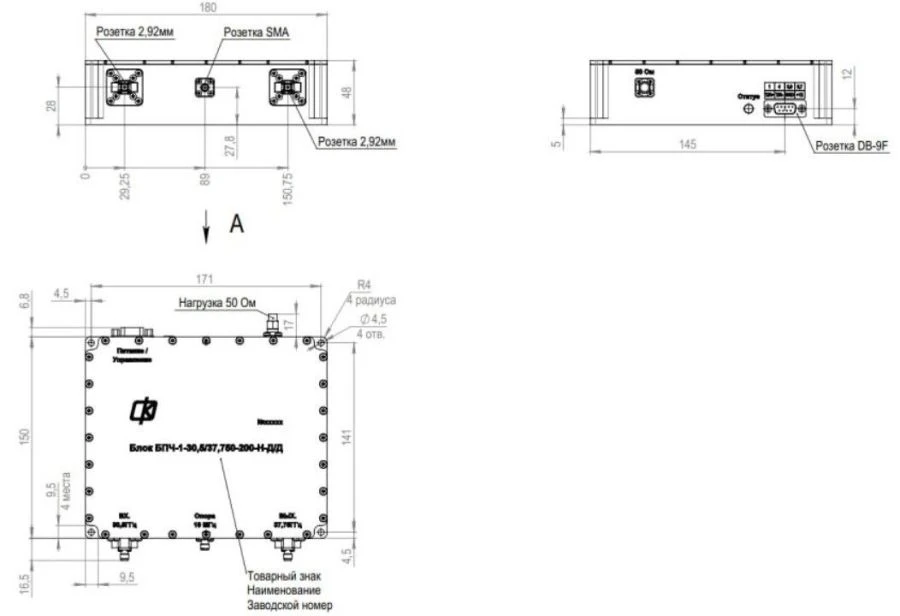

Frequency Transfer Block BPC-1-30.5 for Ka Band Signal Adjustment
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to carry the spectrum of frequencies within the Ka band, with the ability to adjust the signal gain up to 60 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 200 MHz.
Specifications
Input frequency range
30400...30600
Output frequency range
37650...37850
Transmission coefficient (at least)
4
Transmission ratio adjustment range
0...60
Frequency response irregularity (max.)
2
Input/output VSWR (max.)
2
Noise figure (max.)
33
1dB compression point output power (OP1dB, at least)
0.001 W
Heterodyne frequency attenuation (dBn, not less)
60
Mirror channel suppression (dBn, not less)
60
Frequency of the external reference oscillator
10
Internal reference oscillator
Armoured glass
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
13 W
Remote monitoring and control
Got it
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
