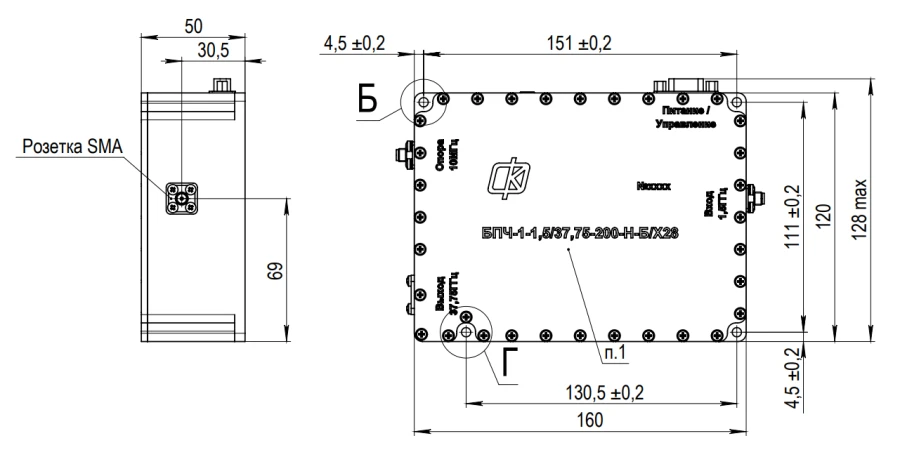

Frequency Transfer Block BPC-1-1.5/37.75-200-N-B/X28 for Signal Amplification
Manufacturer:
FLIX LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to transfer the frequency spectrum from L band to Ka band, with through signal amplification of 20 dB. The output filter provides filtering of the conversion products, the sum and difference of the received harmonics, and suppression of the mirror channel. The bandwidth is 200 MHz.
Specifications
Input frequency range
1400...1600
Output frequency range
37650...37850
Transmission coefficient (at least)
20
Frequency response irregularity (max.)
2
Input VSWR
1.5
VSWR at output
2
Noise figure (max.)
14
1dB compression point output power (at least)
0.025 W
Heterodyne input signal attenuation (dBn, not less)
60
Mirror channel suppression (dBn, not less)
60
Frequency of the external reference oscillator
10
Internal reference oscillator
Got it
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
8 W
Remote monitoring and control
Yes, via DB-9 connector, RS-485 standard
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
