Frequency converters high-voltage multilevel series PCVM

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

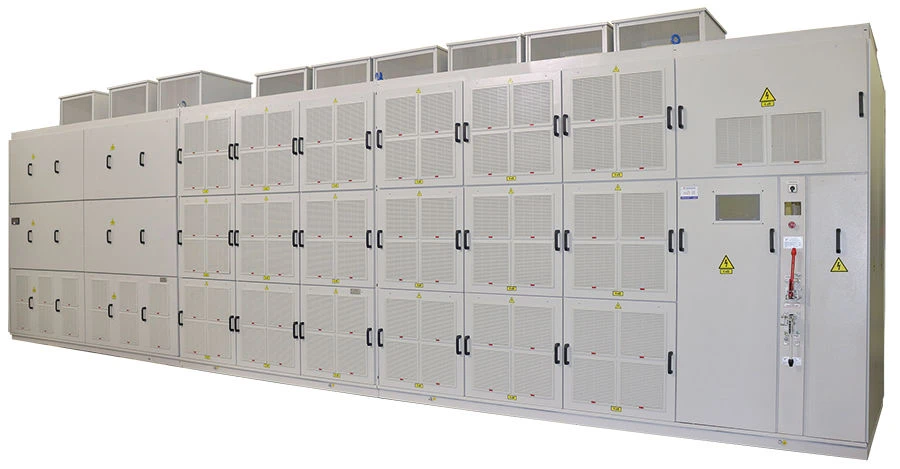

Frequency converters high-voltage multilevel series IFVM are designed to control the speed of three-phase asynchronous and synchronous motors with power from 200 kW to 9 MW and with rated voltage from 3.0 to 11.0 kV. On customer's request they can be equipped with multi-motor switching systems. They can also be supplied in containerised design for outdoor operation. Frequency converters can be used as part of the regulated electric drive of pumps, fans, conveyors, mills, crushers, etc. in various industries.

Technical Specifications

Type of motor to be connected	asynchronous
Rated output voltage	3 kV
Output voltage	3kV to 11kV
Plug-in motor power	From 200kW to 9000kW
Overload capacity	Overloading capacity, during 300s125 % Overloading capacity, during 120s150 %
Efficiency in nominal mode	Not less than 96%
Noise level	Not more than 80 dB
IF control inputs and outputs	Analogue; digital; discrete
Interface language of the IF control panel	Russian
Network protocols	ModbusRTU
Climatic execution according to GOST 15150	For closed heated rooms UHL4
Climatic version according to GOST 15150 For outdoor installation as part of block containers	U1;UHL1
Cable entry into the IF	Top; Side; Bottom
Cooling method	Air
Degree of protection (IP)	31, 42
Power factor at the IF input	At least 0.95
Pulse rate of rectification circuit based on 6kV voltage inverter	Not less than 6kV 30
Pulseness of rectification circuit based on 3kV voltage inverter	Not less than 3 kV 18
Rectification ripple of rectification circuit based on 10 kV voltage inverter	At least 10 kV 48
Number of phases of mains voltage	3
Permissible deviation of supply voltage from nominal value, %	-15 to +10

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
