Available for Import

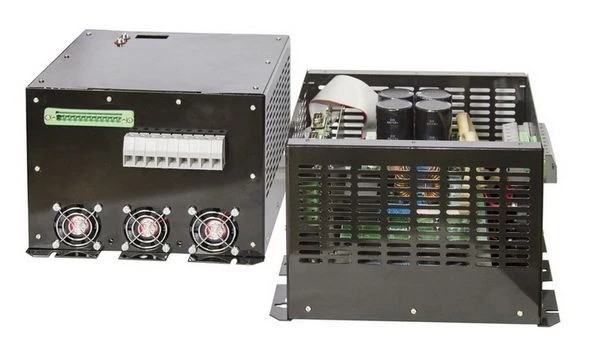

Frequency converter FGUP PO "Sever" PC-5 1-5KVT 50Hz according to GOST 13109, 380±15%V Russia

Electric Motor Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

This electric motor components is manufactured in Russia and is available for import to global markets. Russian-made products are known for their durability, reliability, and excellent price-to-performance ratio.

For detailed product specifications, please see the Specifications tab. Contact our team to request pricing, availability, and shipping information.

Specifications

External communications and interfaces - two RS485 serial ports (Modbus exchange protocol); - three programmable discrete outputs of "open collector" type; - eight programmable discrete inputs for starting, stopping of the actuator, resetting of protections, setting of direction, rotation frequ

Overall dimensions 221x164x270 mm

Speed control range 10000

Model PP-5

Assignment for controlling the speed and position of the shaft of electric drives

Voltage 50Hz according to GOST 13109, 380±15% V

Rated motor power 1-5 kW

Output current overload capacity 200% of nominal

Accuracy of maintaining the set rotational speed ±5 per cent of ass.

Accuracy of speed maintenance Not less than 1.5 per cent

Positioning accuracy of the motor shaft Not more than 3 angular minutes

Frequency of PWM voltages 16-20KHZ

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
