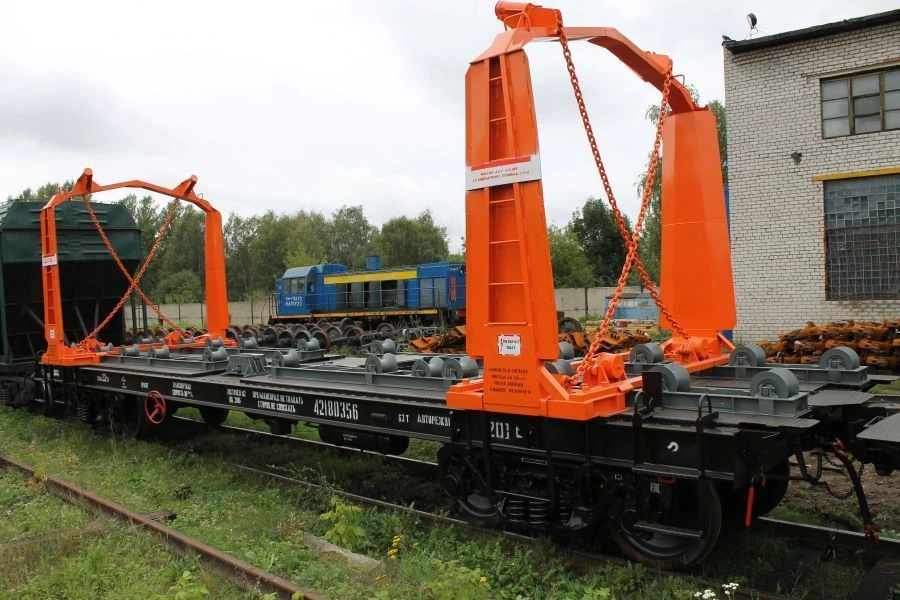

Four-Axle Platform for Transporting Materials and Equipment PM-820

Platform PM-820 is designed for transportation of materials, installation of track machinery equipment during repair of railway tracks (equipment of single-tier, three-tier rail trains, for transportation of rails of 100m length, trains for cloggers, USO platforms, specialised platforms for transportation of wheel sets, construction machinery, etc.).
MAIN PARAMETERS
Tare weight, tonnes 18,4±3%
Payload, tonnes63
Base, mm9720
Length along frame end beams, mm13400±10
Length along coupling axes of couplers, mm14620±20
Width along frame side beams, mm3206±8
Number of axles, pcs 4
Dimensions according to GOST 9238-2013 1-T
Running bogie model18-100
Model of couplingCA-3
Maximum design speed, km/h120
Platform PM-820 has a certificate of conformity
