Available for Import

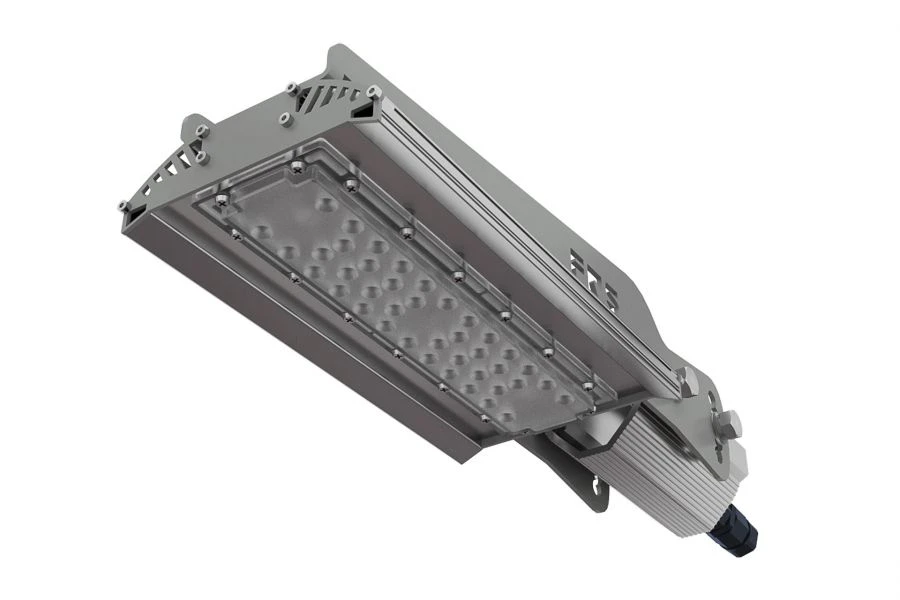

FOS Road R-45 LED luminaire

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Console LED luminaire, used for: lighting of park alleys, courtyards, residential complexes, open areas around industrial enterprises, squares, closed and open car parks, railway platforms, streets and roads with low and medium capacity.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Temperature mode -40...60 °C

Type of supply current AC, DC

Rated supply voltage 90...305 V

Power consumption, W 45 W

Power factor 98

IK code 8

Correlating color temperature (CCT) 3000...6500 K

Lower operating temperature value -40 °C

Net weight 3.9 kg

Gross weight 4.1 kg

Protection class against electric current. 1

Color rendering index (Ra) 70...90

ELECTRICAL PROTECTION CLASS. CURRENT PROTECTION CLASS (NUMERIC VALUE!!!!!!!) 1

Length 430 mm

Width 140 mm

Height Flat grinder, Specialised grinder mm

Housing material Anodized aluminum

Power consumption 45 W

Upper operating temperature value 60 °C

Luminous flux, lm 5940 lm

Pulsation factor 0.1 %

Climatic version UHL1

Type by installation location Street

Color temperature 3000...6500 K

Power supply voltage 90...305 V

Width 140 mm

Length 430 mm

Correlated color temperature 3000...6500 K

Climatic version UHL1

Input voltage 90...305 V

Power 45 W

Luminous flux, lm 5940 lm

Width 140 mm

Length 430 mm

Type of supply current AC, DC

Upper operating temperature value 60 °C

Lower operating temperature value -40 °C

Overall dimensions, DxWxH 430*140*90 mm

Type by installation location Street

Housing material Anodized aluminum

Climatic version UHL1

Power consumption 45 W

Width 140 mm

Length 430 mm

Correlated color temperature 3000...6500 K

Type by installation location Street

Climatic version UHL1

Type by installation location Street

Power consumption 45 W

Height Flat grinder, Specialised grinder mm

Length 430 mm

Width 140 mm

Housing material Anodized aluminum

Climatic version UHL1

Power. 45 W

Height. Flat grinder, Specialised grinder mm

Width. 140 mm

Length. 430 mm

Length 430 mm

Height Flat grinder, Specialised grinder mm

Degree of protection IP 67

Protection class against electric current 1

Degree of protection (IP) 67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
