Fluorescent screen LS1-3 (2)

Specialised Optical Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Luminescent screens LS1 allow to visualise laser radiation of near-infrared spectrum of continuous and pulsed lasers into visible spectral range and to control the course of the beam. Due to the large size of these screens it is possible to use them for detection of laser beams of large diameter, and their polymer base allows to work in various field and weather conditions. Due to their collapsible design, these screens are easy to use and do not take up much space when folded. Features: high resistance to physical influences, to temperature and humidity fluctuations; collapsible design has a number of advantages in operation and storage; wide operating range allows to convert infrared laser radiation from different sources; high durability.

Technical Specifications

Daylight charging is required	Armoured glass
Polymer type	IK2.

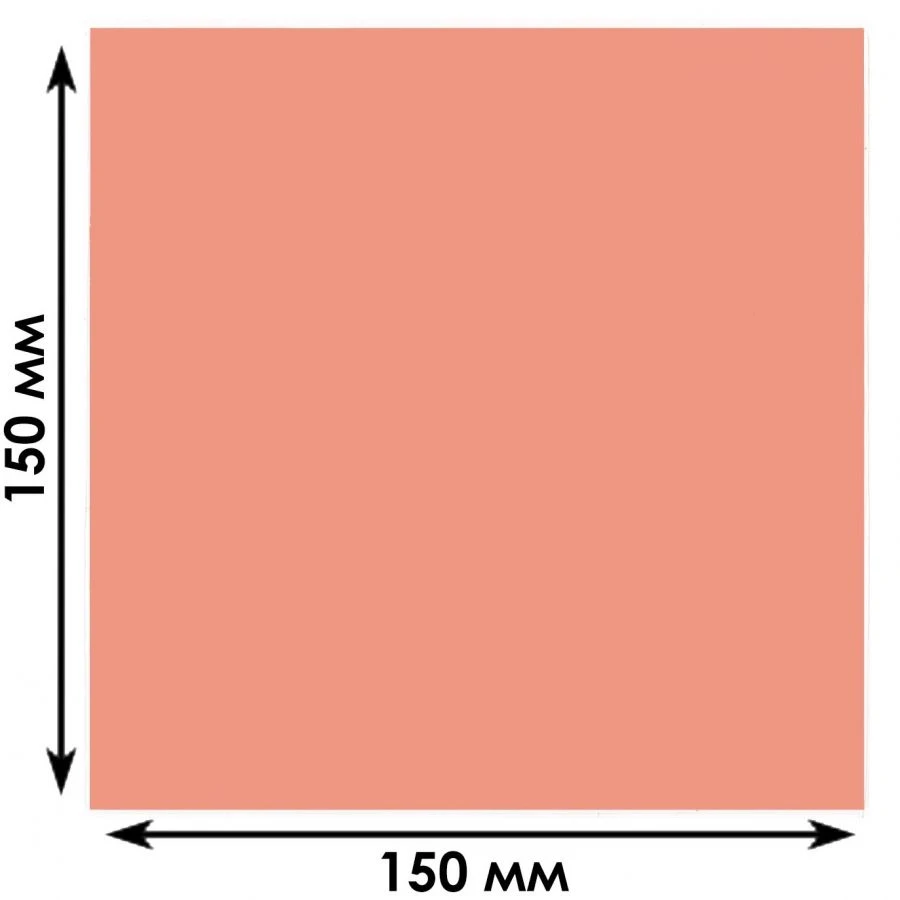

Detection area size	150?150 mm
Spectral range, µm	0,75-2,13+
Failure threshold, mW/cm^2	>700
Sensitivity, ?W/cm^2	<20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Glow color	red
Possibility of manufacturing according to individual dimensions	Armoured glass
Adhesive layer	no
Type	Standard

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
