Floor standing telecommunication cupboard 19", ??-??-?-?-??, front door perforated, black SSD
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

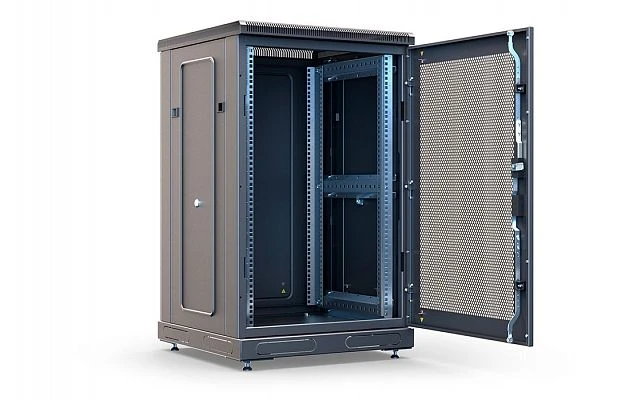

Designed to accommodate active and passive telecommunication equipment. The product is made in the system of supporting structures of 482.6 mm (19") series.
Climatic version UHL4, designed for operation in closed rooms.
It has a fully collapsible design and consists of a base, roof and two welded frames connected by a set of channels.
It is delivered in three transport places.
Due to the fastening elements, the cabinet frame has increased rigidity. Distributed vertical load up to 600 kg. The cabinet is equipped as standard with: front door, side and rear walls with locks.
Cable glands are provided in the upper and lower parts of the cabinet. Fan modules can be installed in the base or roof of the enclosure.
The vertical rails are depth adjustable. The enclosure earthing system is standard.
In the base of the cabinet provides installation of screw supports (legs) to compensate for unevenness of the floor, as well as possible installation on the roll ... .
Climatic version UHL4, designed for operation in closed rooms.
It has a fully collapsible design and consists of a base, roof and two welded frames connected by a set of channels.
It is delivered in three transport places.
Due to the fastening elements, the cabinet frame has increased rigidity. Distributed vertical load up to 600 kg. The cabinet is equipped as standard with: front door, side and rear walls with locks.
Cable glands are provided in the upper and lower parts of the cabinet. Fan modules can be installed in the base or roof of the enclosure.
The vertical rails are depth adjustable. The enclosure earthing system is standard.
In the base of the cabinet provides installation of screw supports (legs) to compensate for unevenness of the floor, as well as possible installation on the roll ... .
Specifications
Width
600...800 mm
Weight
49...130 kg
Height
970...2260 mm
Depth
600...1000 mm
Form factor (rack-mounted, freestanding)
Floor
Height/story (unit)
47
Distributed load
250-700 kg
Operating temperature range
40 °C
