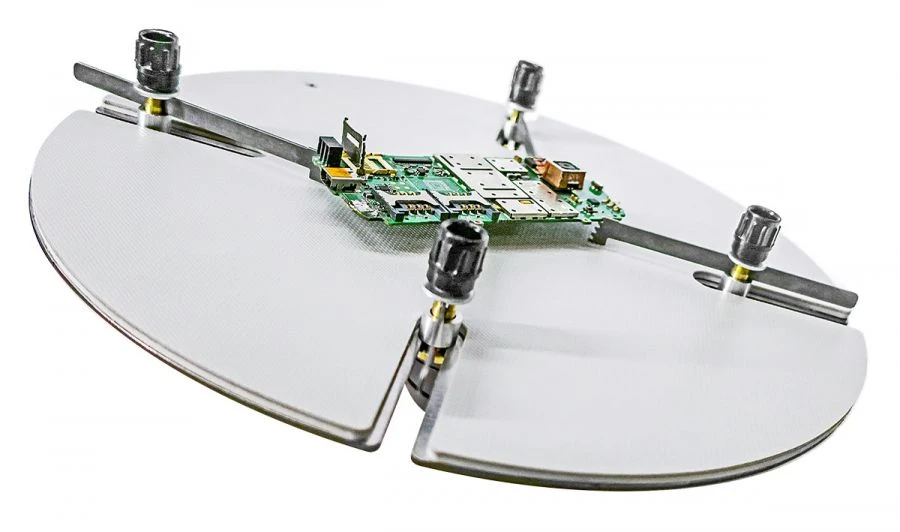

Floating tilting table PS-250/esd "Thermopro" Fixture for visual inspection of soldering quality of printed circuit boards.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The ball guarantees smooth silent turning and tilting of the table in any direction without changing the working height in the centre. If necessary, the printing unit of any configuration can be fixed with special adjustable feet.
In combination with the automatic focusing of the video camera, the table provides a comfortable and fast inspection of the printed assembly. Most importantly, the controller now has access to an angled inspection of solder joints, which is not possible with conventional vertical inspection.
All parts of the table are made of aluminium alloy, stainless steel and are electrically connected, which in combination with a soft antistatic coating provides a safe visual overview of the printing unit under a video microscope.
In combination with the automatic focusing of the video camera, the table provides a comfortable and fast inspection of the printed assembly. Most importantly, the controller now has access to an angled inspection of solder joints, which is not possible with conventional vertical inspection.
All parts of the table are made of aluminium alloy, stainless steel and are electrically connected, which in combination with a soft antistatic coating provides a safe visual overview of the printing unit under a video microscope.
Specifications
Table diameter
250 mm
Table height
50...70 mm
Maximum tilt angle
24
Centre of rotation
10 mm
Weight of table
1.5 kg
