Floating Navigation Sign RB-6-01 for Waterway Guidance

Available for Import

Floating Navigation Sign RB-6-01 for Safe Waterway Navigation

Floating Navigation Aids

Manufacturer: BLOCK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Navigation sign RB-4-01 Navigation sign RB-5-01 Navigation sign RB-3-01

Description

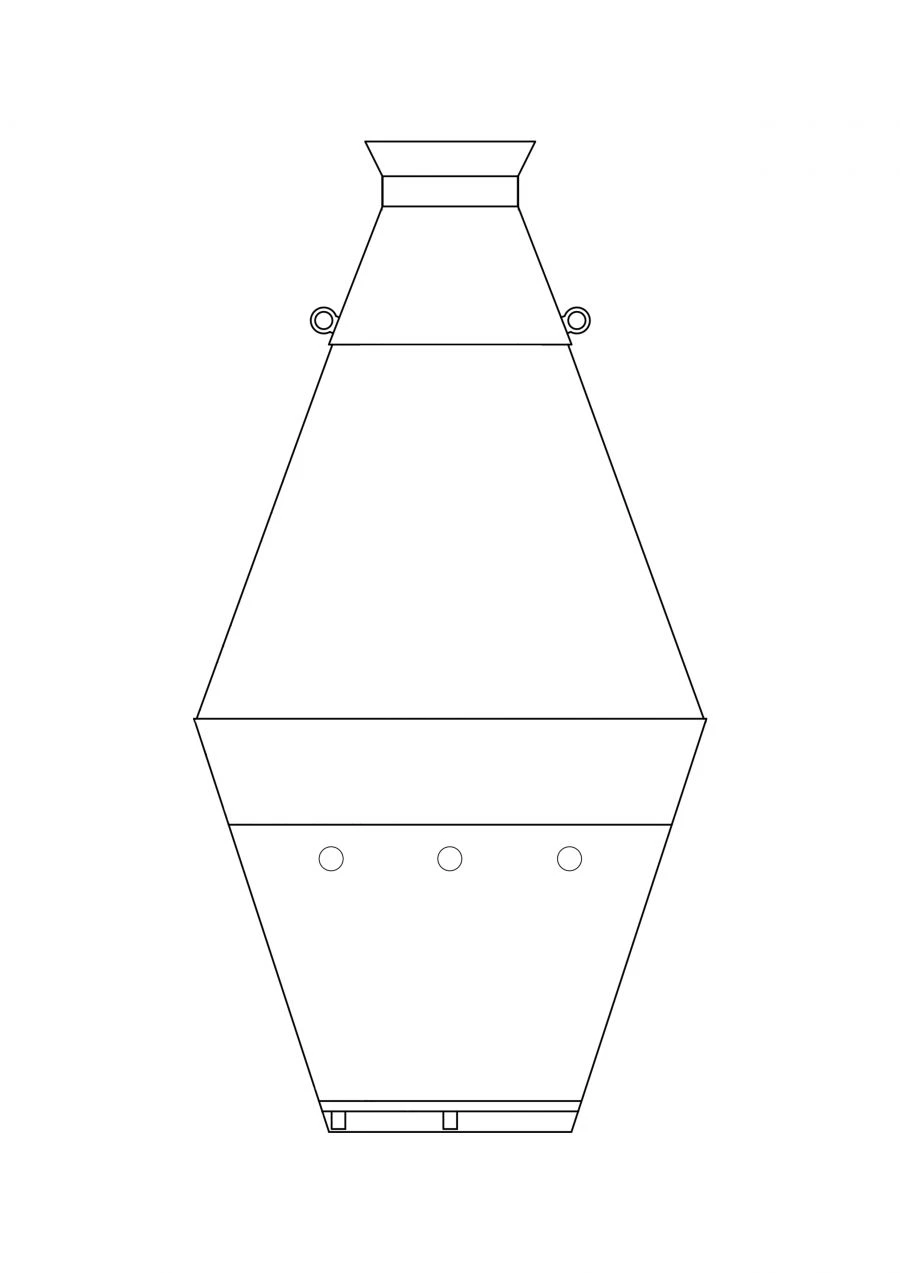

Floating navigation sign of the 6th type size of triangular silhouette (axial) is intended for orientation of navigators on inland shipping lanes: it marks the axis of a ship's course and divides it into two (right and left) running lanes for oncoming vessels. The navigation mark should be used in summer. The buoy is a welded polymer product with a sealed compartment filled with foam material with low water absorption, which ensures the unsinkability of the product. The case is made of impact-resistant, frost-resistant plastic (block copolymer), providing high resistance to mechanical damage, maintainability and durability of the product.

Specifications

Type of product according to PP RF 616

Buoys and buoys

Depth of sign placement

4...12 m

Body thickness

8 mm

Service life until write-off

10 year

Possibility to install light-optical device (flashlight), remote monitoring system

There's a provision

Housing material

polypropylene (block polymer)

Casing thickness (bottom casing)

8 mm

Hull thickness (above water)

6 mm

Type (surface silhouette)

Buoy weight without equipment and anchor

180 kg

Anchor weight

80 kg

Size

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
