Floating Navigation Sign RB-4-01 Available for Import

Floating Navigation Sign RB-4-01 for Guiding Vessels on Inland Waterways

Floating Navigation Aids
Manufacturer: KORABEL-NN LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Navigation sign RB-4-01 Navigation sign RB-6-01 Navigation sign RB-5-01

Description

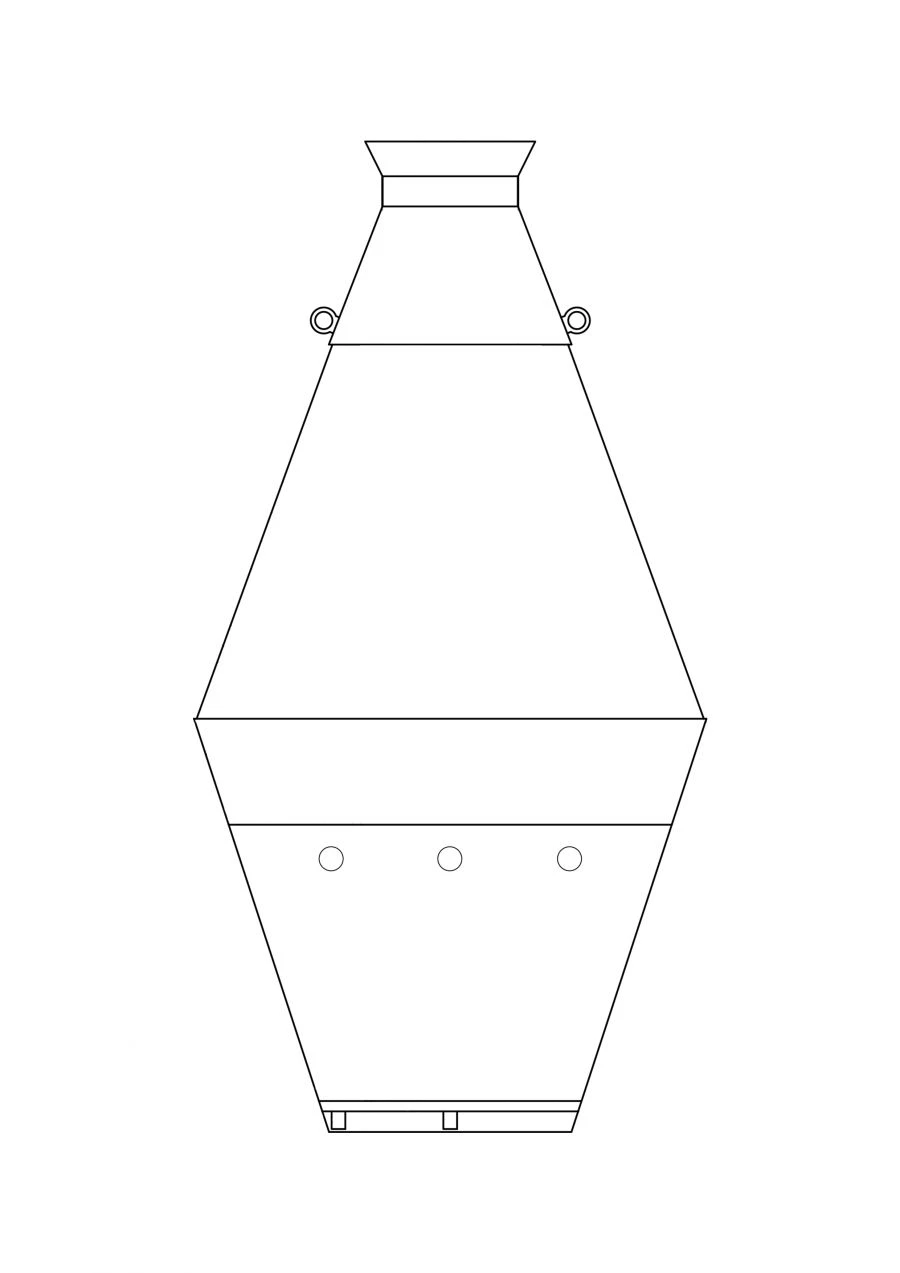

Floating navigational sign of the 4th type size of triangular silhouette is intended for navigators' orientation on inland waterways: it marks the edge of a ship's course, turns of straight sections of a ship's course. The triangular silhouette buoy marks the left edge of the ship's course. The buoy is a welded polymer product with a sealed compartment filled with foam material with low water absorption, which ensures unsinkability of the product. The case is made of impact-resistant, frost-resistant plastic (block copolymer), providing high resistance to mechanical damage, maintainability and durability of the product.

Specifications

Type of product according to PP RF 616
Buoys and buoys
Depth of sign placement
4...10 m
Body thickness
8 mm
Service life until write-off
10 year
Possibility to install light-optical device (flashlight), remote monitoring system
There's a provision
Housing material
polypropylene (block polymer)
Anchor weight
SBVVBG kg
Buoy weight without equipment and anchor
100 kg
Type (surface silhouette)
1
Hull thickness (above water)
6 mm
Casing thickness (bottom casing)
8 mm
Size
4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
