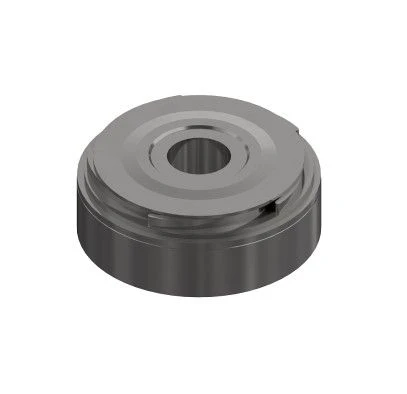

Floating Diffuser MT5-25DP 17mm Ni-Resist Available for Import

Floating Diffuser MT5-25DP 17mm Ni-Resist for Efficient Liquid Flow Management

Pump Spare Parts
Manufacturer: REDALIT SCHLUMBERGER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Apparatus guiding MT5-25DP. Nominal flow rate 25 m3/day. Application: Element of the pumping stage, serving for withdrawal of the liquid flow from the impeller, transformation of kinetic energy of the liquid flow into potential energy, supply of the liquid flow to the next impeller. Diameter - 80 mm; Height - 29,5 mm; Material - alloyed cast iron Niresist; Weight - 0,25 kg.

Specifications

Nominal flow rate
Flow rate nominal 25 m3/day.
Diameter
80 mm
Height
29.5 mm
Material
alloyed cast iron Niresist
Weight
0.25 kg
