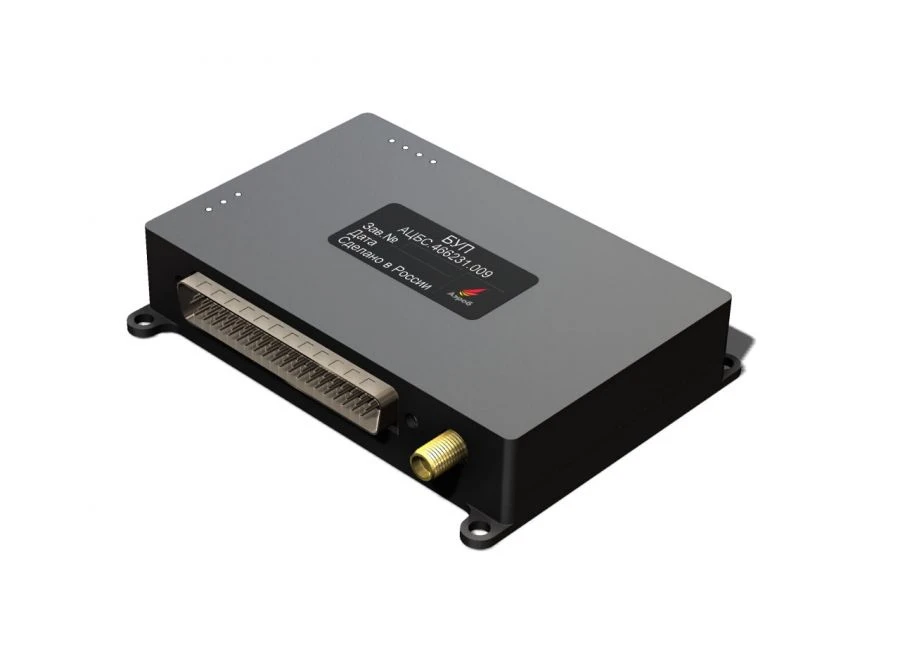

Available for ImportFlight Control Unit (FCU) for Drone Management - ACBSC.466231.009
Manufacturer:AEROB LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The flight control unit is designed to control the UAV systems at all stages of flight. It collects information from inertial and satellite navigation units, calculates the orientation and position of the UAV in space, and, in accordance with the specified flight programme, controls the actuators: servo drives of control planes, electric motors, internal combustion engines and others.
Specifications
Device weight
200 year
Power supply voltage (two power inputs, main and backup)
10...60 V
Operating temperature range
Minus 40 to plus 40
Non-volatile data storage module (Flash)
16
GNSS module (determination of time-based current position coordinates and current speed vector)
GLONASS (ST code), GPS/SBAS (C/A code) and Galileo (E1 B/C codes)
PWM outputs
16 pcs
CAN
2 pcs
UART (SBUS)
5 (1)
SPI
1 pcs
BANO keys
4 pcs
USB OTG
1 pcs
USB Device
1 pcs
5/7.4V 5A power outputs
3 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
