Available for Import
Flexible power cables, not spreading combustion, for voltage 380 V and 660 V, KGN
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Power cables with copper conductors with rubber insulation and sheath of KG 380 V brand are intended for connection of portable and mobile electric devices to electric networks at rated alternating voltage 380 V with rated frequency up to 400 Hz or permanent voltage 660 V.
The cable can be used for laying both indoors and outdoors, without laying underground.
It is allowed, with observance of all safety measures, installation of cable line in the open air on ropes and trestles.
Technical Specifications

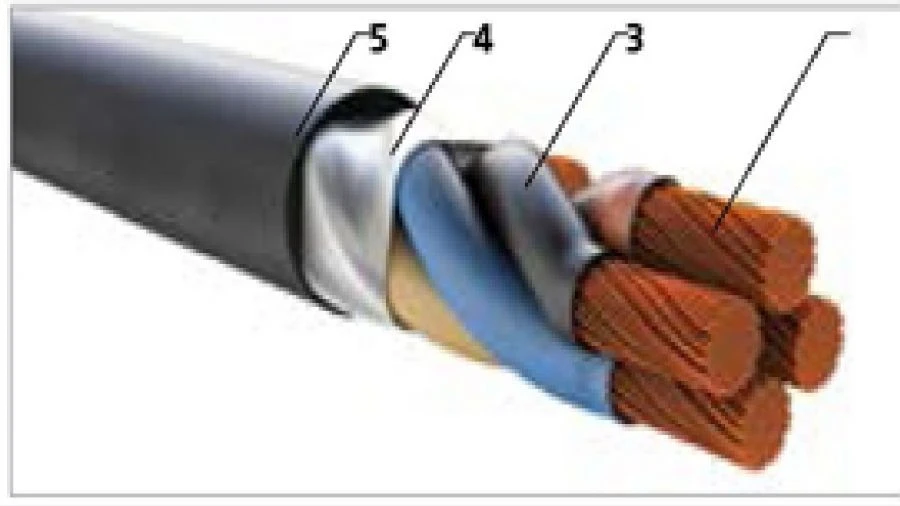

| Core design | Conducting core - copper multi-conductor, round, corresponds to class 5 according to GOST 22483. |
|---|---|
| Filling between insulated conductors | Separation layer - synthetic film or talc or other similar material applied to the core. It is allowed to manufacture without film provided that the insulated cores are separated from the sheath. |
| Type of sheathing and protective cover | Separation layer - synthetic film or talc or other similar material applied to the core. It is allowed to manufacture without film provided that the insulated cores are separated from the sheath. |
| Number of conductive cores | 1...5 pc |
| Nominal cross sections of conductor cores | 2.5...185 mm2 |
| Nominal voltage | 0.38...0.66 kV |
| Conducting core material | Copper |
| Mark | CHS |
| Core material | Copper |
| Core diameter | 2...18 mm |
| Insulation material | 2.Insulation - of insulating rubber. |
| Sheath material | 4. outer jacket is made of hose rubber. |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
