Flexible Power Cables for Voltage Up to 220V KOGN1

Available for Import

Flexible Power Welding Cables KOGN1 for Arc Welding Applications

Stationary Power Cables 1kV

Manufacturer: INKATEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Flexible power cables with voltage up to 220 V KOG1-XL

Description

Seal especially flexible welding cables KOGN 1 for 220 V are designed for connection at arc welding of electrode holders, automatic and semi-automatic welding units, as well as for manual electric arc welding with a source for nominal alternating voltage 220 V of frequency 50 Hz or constant voltage 700 V. Cables are designed for operation outdoors, under a canopy, in closed rooms, as well as in rooms with high humidity, in which the prolonged presence or frequent condensation of moisture on the walls and ceiling is possible. Cables are resistant to solar radiation. KOGN1 cable does not spread combustion.

Specifications

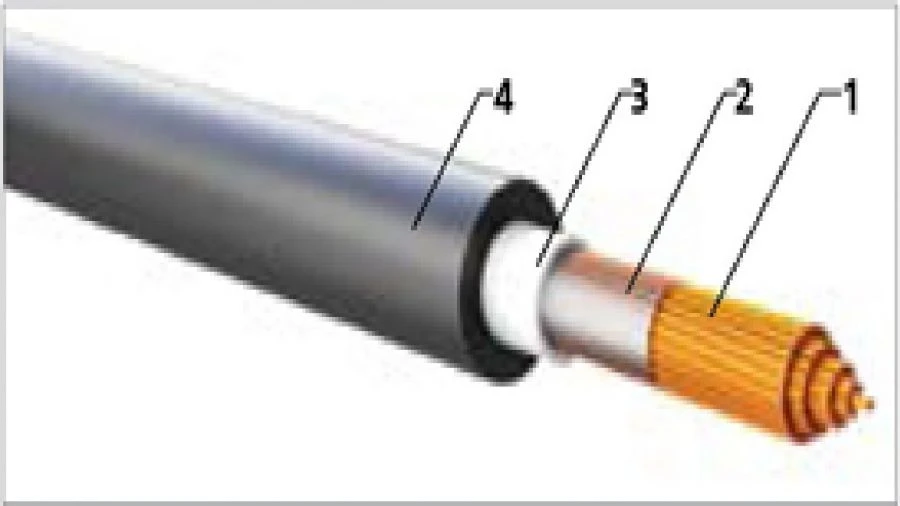

Core design

Conducting core - copper multi-conductor, round, corresponds to class 6 according to GOST 22483.

Filling between insulated conductors

absent

Type of sheathing and protective cover

Separating layer - of synthetic film.

Number of conductive cores

1 pcs

Nominal cross sections of conductor cores

16...150 mm²

Nominal voltage

0.22 kV

Conducting core material

Copper

Mark

COGN 1

Core material

Copper

Core diameter

2...18 mm

Insulation material

3.Insulation - of rubber insulating type RTI-1 on the basis of natural and butadiene rubber.

Sheath material

4.Sheath - of rubber type RSh-1 on the basis of synthetic rubbers for cable KOGN1 rubber, not spreading burning.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
