Flexible Power Cables for 220V - KOG1 Model Available for Import

Flexible Power Welding Cables for 220V - KOG1 Model and Applications

Stationary Power Cables 1kV
Manufacturer: INKATEX LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Seal especially flexible welding cables KOG1, KOG1-XL for 220 V are designed for connection at arc welding of electrode holders, automatic and semi-automatic welding units, as well as for manual electric arc welding with a source for nominal alternating voltage 220 V of frequency 50 Hz or constant voltage 700 V. Cables are designed for operation outdoors, under a canopy, in closed rooms, as well as in rooms with high humidity, in which the prolonged presence or frequent condensation of moisture on the walls and ceiling is possible. Cables are resistant to solar radiation. KOGN1 cable does not spread combustion.

Specifications

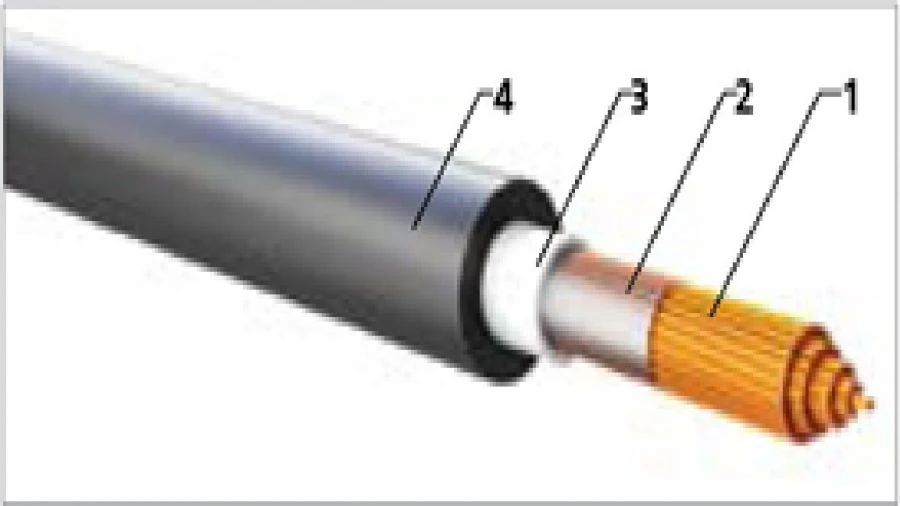

Core design
Conducting core - copper multi-conductor, round shape, corresponds to class 6 according to GOST 22483. 2.Separating layer - of synthetic film.
Filling between insulated conductors
absent
Type of sheathing and protective cover
Separating layer - of synthetic film.
Number of conductive cores
1 pcs
Nominal cross sections of conductor cores
16...150 mm²
Nominal voltage
0.22 kV
Conducting core material
Copper
Mark
COG1
Core material
Copper
Core diameter
2...18 mm
Insulation material
Insulation made of RTI-1 type insulating rubber on the basis of natural and butadiene rubber.
Sheath material
Sheath - of rubber type RSH-1 based on synthetic rubbers

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
