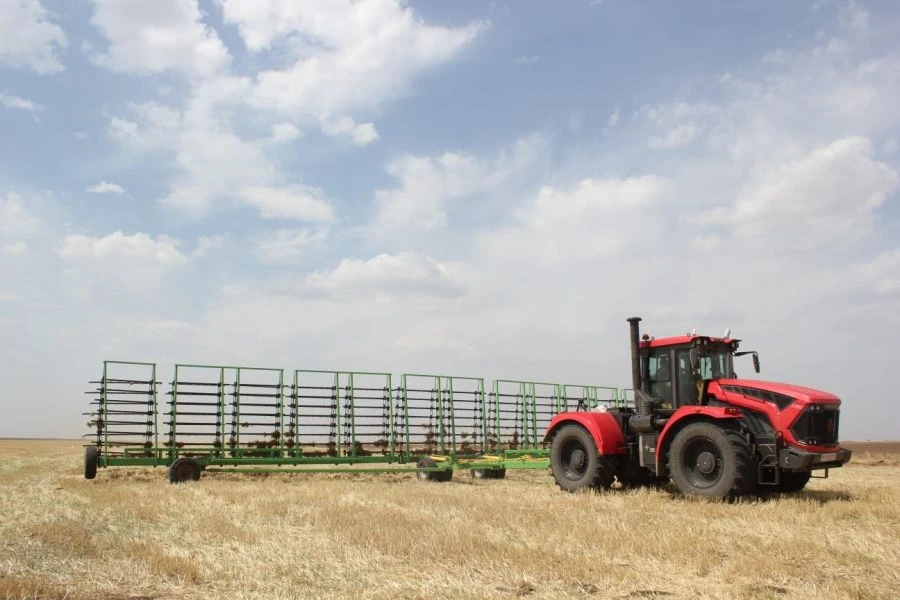

Flexible harrow BG-22S "Horizon" (16 rows)

The flexible harrow is designed for the cultivation of winter crops with the purpose of surface loosening, soil levelling, destruction of thread-like weed sprouts and preservation of moisture. It can also be used effectively for cultivating fallow land. The harrow is equipped with 16 rows of tines. The method of hitching is trailed. Advantages: the flexible harrow has 69 tines per 1 metre of working width with 16-row sections; the presence of tines for cultivating the soil behind the side wheels; the knife-shaped tooth reduces the area of frontal resistance, reduces the traction resistance of the entire harrow, increases the working width and the overall productivity of the machine while reducing the cost of fuel and lubricants; the tooth itself is hardened. Folding and unfolding is done by hydraulic cylinders and forward and backward movement of the tractor. Double hydraulic grippers of stretching bars with additional fixation in the working position exclude the possibility of accidental unlocking and accidental unfolding and folding of the machine.
