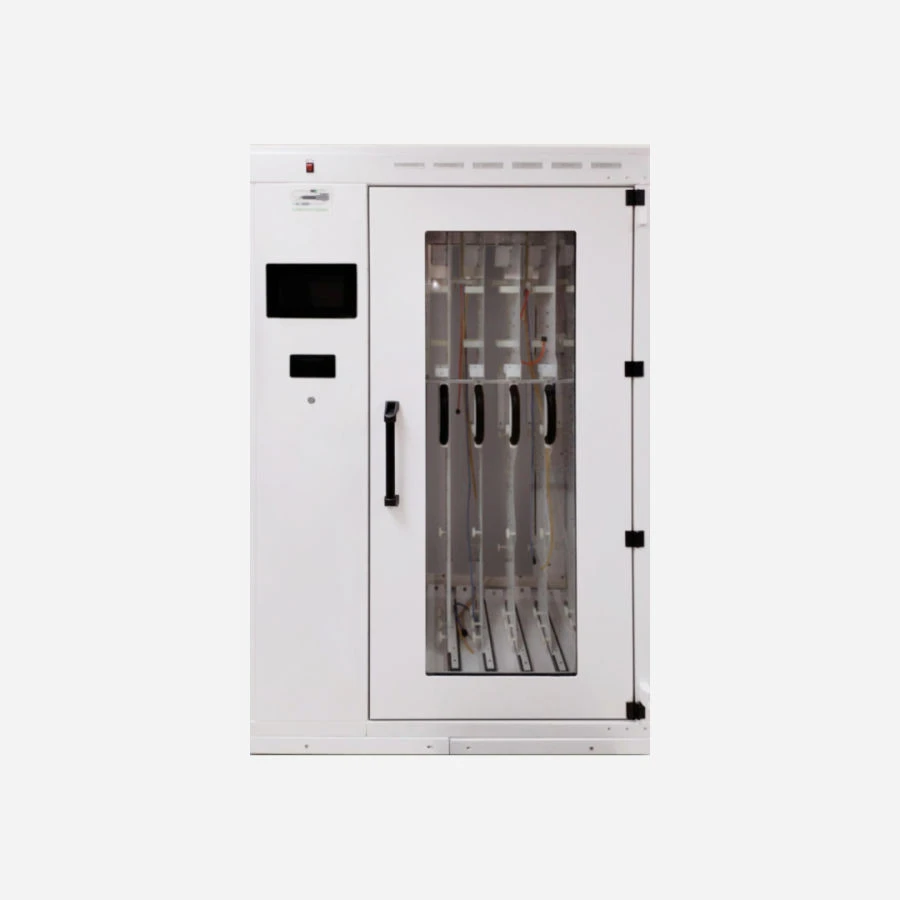

Flexible Endoscope Drying and Storage Cabinet "KLINSKOPBOX", KLINSKOPBOX-6 for Optimal Hygiene

Medical Equipment Supplies

Manufacturer: CBG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The KLINSKOPBOX-6 cabinet delivers professional-grade endoscope preservation through forced circulation of ultra-purified filtered air into storage compartments and instrument channels. This advanced drying system eliminates moisture completely and prevents bacterial and fungal contamination, meeting strict medical facility standards. Ideal for hospitals and specialized clinics requiring maximum hygiene protocols and equipment protection.

Built for durability and efficiency, the cabinet features a retractable holder for easy endoscope placement and removal. Compatible with various flexible fibroscopes and video endoscopes through universal connectors, providing versatility for diverse medical applications. Investing in KLINSKOPBOX-6 extends equipment lifespan, reduces contamination risks, and ensures your valuable diagnostic instruments remain in optimal condition for years.

Specifications

Type of product according to PP RF 616

Medical devices, including surgical, other, not included in other groupings

The fan unit ensures the supply of absolutely cleaned air passed through filters and maintains the overpressure in the

Armoured glass

Power supply 230V / 50 Hz

Armoured glass

Thermal printer

1 pcs

Storage compartment door with transparent window

Armoured glass

The endoscope storage compartment door is equipped with an electromagnetic lock

Armoured glass

Weight without endoscopes

210 kg

Overall dimensions, height

1958 mm

Overall dimensions, width

591 mm

Overall dimensions, length

1210 mm

Ability to print checks with storage parameters via built-in thermal printer

Armoured glass

Possibility of operator identification by means of a programmable magnetic card

Armoured glass

Ability to identify each endoscope with a separate programmable tag

Armoured glass

Color-coded endoscope storage time alarms

Armoured glass

Display of filter runtime and storage time for each endoscope

Armoured glass

Electronic control unit with digital information display

Armoured glass

Color coding of air supply tubes to endoscope channels

Armoured glass

Set of adapters for connecting endoscopes of different brands and models to the cabinet

Armoured glass

Endoscope storage compartment lighting

Armoured glass

Possibility to connect the cabinet to a centralized air supply

Armoured glass

Air curtain to cut off the external air environment from the aseptic air environment when the door is opened

Armoured glass

Individual compressor for each air supply position for flexible endoscope channels

Armoured glass

Removable moisture tray under each pull-out holder

6 pcs

Technical air treatment compartment for the subsequent supply of absolutely purified air to the endoscope storage compartment

Armoured glass

Retractable endoscope holders with valve storage baskets

6 pcs

Possibility of simultaneous storage of endoscopes

6 pcs

Possibility to operate the cabinet autonomously (air flow production due to the block of fans and compressors)

Armoured glass

Aseptic conditions are achieved with fine cleaning by HEPA filters

Armoured glass

Air preparation is carried out with coarse and fine filters

Armoured glass

Method of placing endoscopes vertically

Armoured glass

Removable protective skirt for the enclosure support base

Armoured glass

Technical compartment covers are equipped with keyed locks

Armoured glass

Housing material: powder coated stainless steel

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
