Flexible cable intended for control and power supply of electric drives of mobile and stationary objects, equipment, machines.

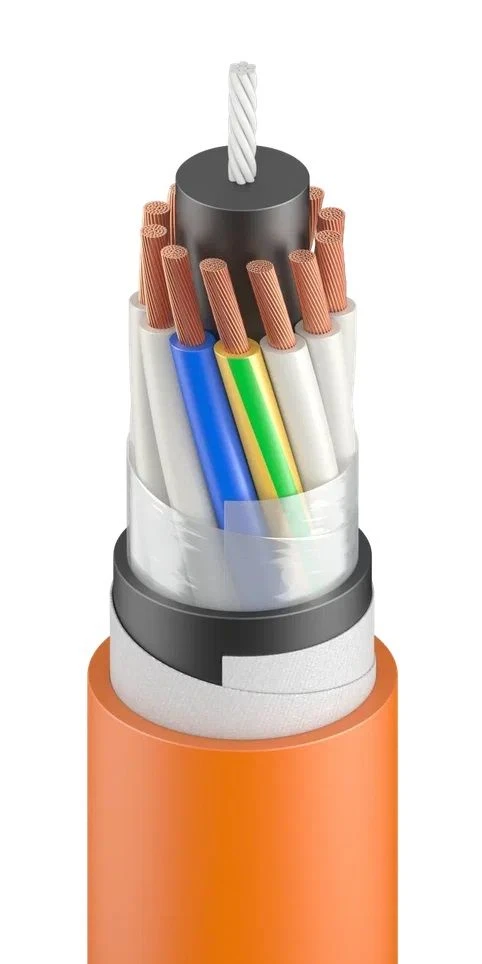

Flexible cable with copper conductive cores with cross-section from 0,75 to 150 mm2, number of cores from 1 to 36 with insulation made of thermoplastic elastoplast, with common shield made of copper wires, overlaid with braid or combined shield in sheath made of oil-resistant polyurethane, not spreading combustion, with reinforcing core based on polyester yarns, insulated with thermoplastic composition, with protection against longitudinal torsion. They are intended for operation in bending conditions, under constantly acting tensile force for connection of mobile mechanisms to electric networks for voltage 0,6/1 kV of alternating current with frequency up to 400 Hz or constant voltage 0,9/1,5 kV.
