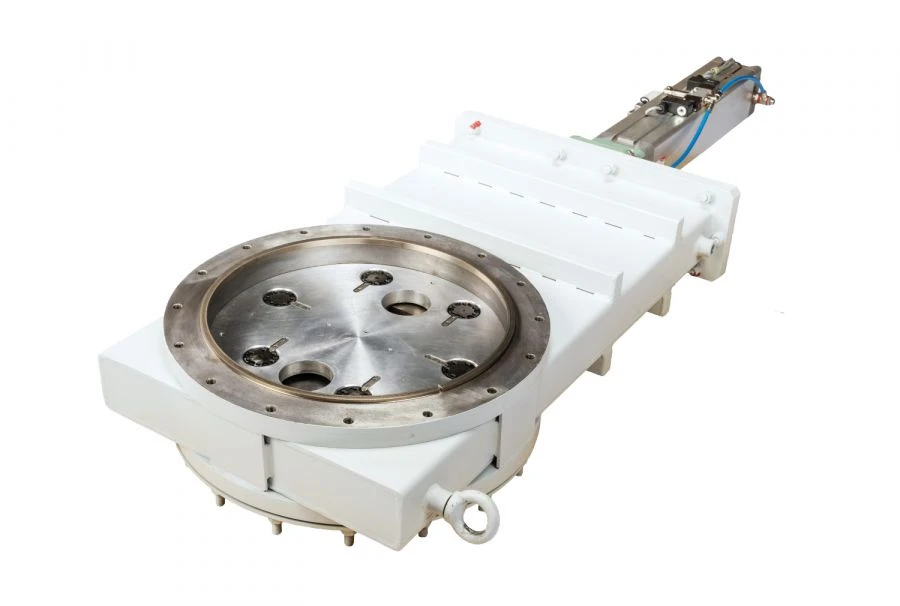

Flat pneumatic actuated vacuum gate ZVPLP-400

Pipeline Control Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Flat pneumatic actuated vacuum gate ZVVPLP-400 with nominal bore 400 mm is designed for shutting off vacuum systems in the pressure range from 1x10 -6 to 1,07x10 5 Pa. It is manufactured in climatic version UHL4 according to GOST 15150-69. Operating medium - air and non-aggressive gases. Flat pneumatic-operated vacuum gate valve ZVPLP-400 is not intended for use in fire-explosive production facilities.

Technical Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than	SBVVBG
Tightness norm, l-Pa/s, not more than	1x10 -7 l - Pa/c
Time of opening (closing) of the gate from the pneumatic actuator, s, not more	20
Air pressure in pneumatic cylinder, kg s/s2	065(+/-005) kg s/s2
Air flow rate (theoretical), Nl/min not more than	60 (+/-5) Nl/min.
Pressure difference in closed position on either side of the flap, Pa, not more than	1,07?10 5
Permissible pressure difference at flap opening, Pa, not more than	1,33?10 3
Nominal bore, mm	400 mm
Overall dimensions, mm, not more	1633x150x642 mm
Weight, kg, not more	130 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
