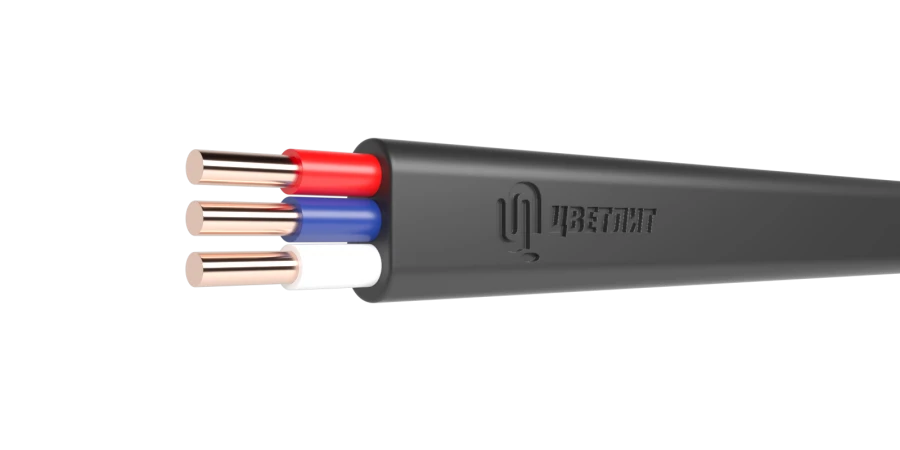

Flat fire-resistant power cable with PVC insulation 1kV VVG-Png(A)-LS 3x6

Copper Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Flat power cable with PVC insulation of reduced flammability 660V VVGng(A)-P 3x10 Power flat screened cable with PVC insulation 1kV VVGE-P 2x1.5 Power flat shielded cable with PVC insulation 660V VVGE 2x1.5 Power flat cable with PVC insulation 660V ???-? 3?6 Power flat cable with PVC insulation 1kV VVG-P 3x10

Cable of flat form with copper single-wire or multi-wire conductors, with insulation and sheathing made of PVC plasticate of reduced fire hazard. For group laying, taking into account the volume of combustible load of cables, in internal electrical installations, as well as in buildings, structures and closed cable constructions.

Technical Specifications

Mark	VVG-Png(A)-LS
Core material	Copper
Insulation material	PVC plasticate of reduced fire hazard
Sheath material	PVC plasticate of reduced fire hazard
Filler material	core space filler made of polymer composition with improved fire safety properties
Climatized version	UHL
Nominal voltage	1000 V
Ambient temperature during cable operation	OT -50 to +50 °C
Number of cores	3 pc
Core cross section	6 mm2
Cable thickness	7.5 mm
Calculated weight	301 kg
Cable width	17.5 mm
Fire hazard class according to GOST31565	P1b.8.2.2.2.2.
Longest permissible operating temperature of conductors	70 °C
Maximum permissible heating temperature of cable cores in overload mode	Flat grinder, Specialised grinder °C
Maximum heating temperature of cable cores at short circuit	160 °C
Maximum heating temperature of cable cores under the condition of non-fire in case of short circuit	350 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
