Flat Conductor Holder DP-45GC-04.420 Available for Import

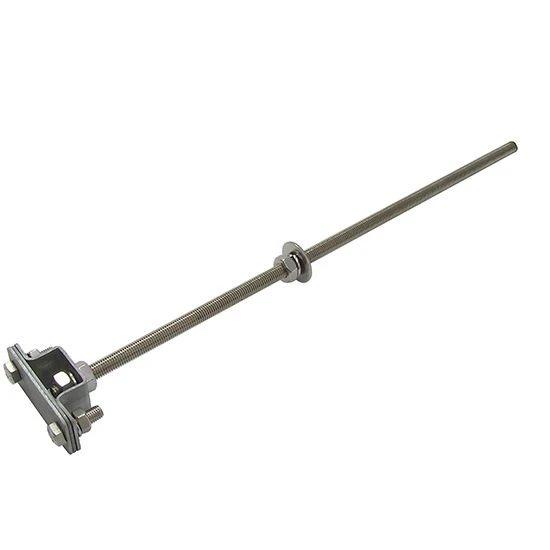

Flat Conductor Holder DP-45GC-04.420 for Grounding and Lightning Protection

Metal Hardware Products
Manufacturer: ELMASHPOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for fixing and connecting (parallel) flat (20-45) x (3-5) mm clamped conductors (lightning protection current collectors and grounding conductors) made of hot-dip galvanised steel to walls, plinths and ceilings made of the following materials: concrete, full-body brick, natural stone. Fastening is made with the help of a chemical anchor through the insulation made of combustible materials. Used as part of lightning protection, earthing and equipotential bonding systems. Made of steel with hot zinc coating according to GOST 9.307-89, fasteners made of stainless steel.

Specifications

Weight
0.395 kg
Material
Material of bracket and holder plates: steel with hot zinc coating according to GOST 9.307-89
Size
70...30 mm
Type
conductor holder
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
