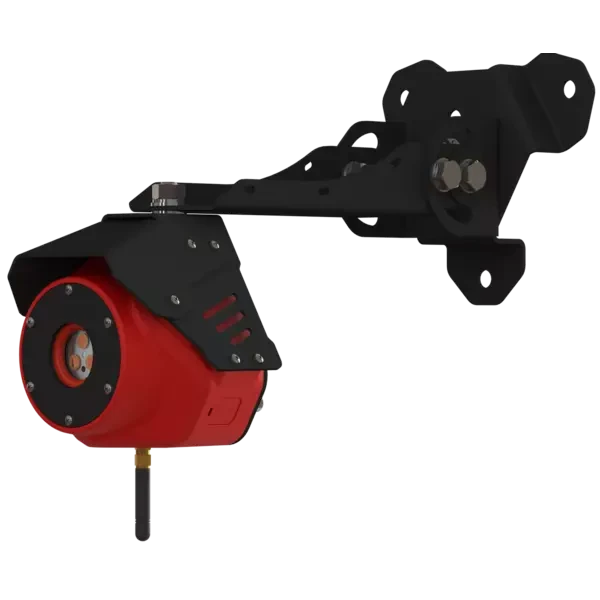

Flame Detector IP 330-1-1 (RO-R ASPZ) for Underground Use

Available for Import

Flame Detector IP 330-1-1 (RO-R ASPZ) for Fire Safety in Mines

Fire Safety Devices

Manufacturer: SPBEX-MINING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

IP 330-1-1 (RO-R ASPZ) is designed to detect fires accompanied by the appearance of electromagnetic radiation of the flame source located in the field of view of the IPP, as well as to provide information interaction with fire alarm control panels wireless radio interface to IEEE802.15.4 (ZigBee).

Specifications

Explosion protection marking

RO Ex ia I M

Operating temperature

-20...60 °C

Degree of protection against external influences

IP65 (external side)

Protection class against electric shock

III

Power supply

Battery - 2 pcs (main and backup)

Battery type

Li-SOCl2

Rated battery voltage

3.6 V

Rated battery capacity (main ER26500 "EEMB "*)

Rated capacity of the battery (ER14505 "EEMB "* backup)

Operation time in standby mode from the main battery, not less than

NZ-150-14,5

Rated voltage of power supply circuits

3.3 V

Connection interface

Wireless radio interface IEEE802.15.4

Maximum communication range IEEE 802.15.4 (line of sight)

400 m

Maximum spectral sensitivity:

First reference IR channel: 4.0 µm; Second reference IR channel: 5.0 µm; Measuring IR channel: 4.4 µm

IPP sensitivity (distance at which a stable operation is ensured) for test hearth TP-5, TP-6, not less than

25 m

Triggering time from test foci TP-5, TP-6, no more than

Maximum permissible value of background illumination (from fluorescent lamps), not less:

2500

Maximum permissible value of background illumination (from incandescent lamps), not less:

250

Viewing angle relative to the optical axis of the sensing element, not less than

Flat grinder, Specialised grinder

Time of voltage removal for transfer from the "Fire" mode to the standby mode, not less than

Duty mode restoration time after power supply voltage removal, not more than

Overall dimensions

166 x 280 x 355 mm (with bracket); 140 x 200 x 105 mm (without bracket)

Weight, not more

2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
