Flagman Electromechanical Turnstile Gate for Secure Automated Access Control

Security System Accessories

Manufacturer: INFOMAT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

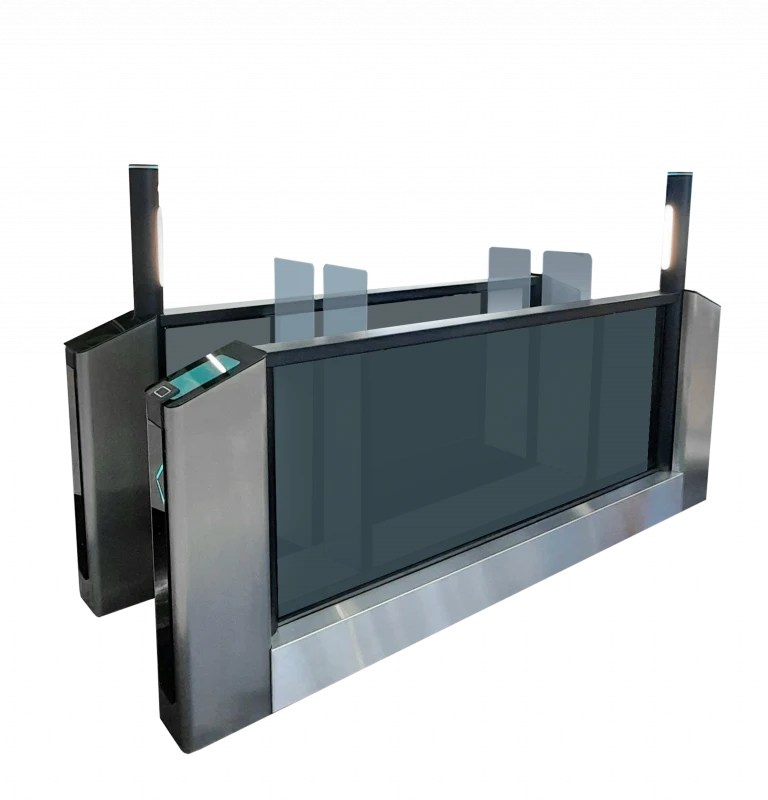

Flagman turnstile is a pass-through device with two boundaries of swinging sashes of increased height. The turnstile is designed to organise automated access control at facilities with high requirements to the access control regime. The turnstile body and leaves are made of stainless steel and tempered glass. The turnstile is equipped with a 10" display, proximity card reader and barcode scanner for each passage direction. LED indication of the passage status provides user-friendliness for visitors. The visitor is identified by one of the ways - contactless card, QR code, NFC, and the visitor is in the zone of control of the number of people when the doors are closed.

Specifications

Operating frequency

13.56

Maximum number of access points

2 pcs

Maximum number of connected IP, AHD, TVI, CVI cameras

2 pcs

Possibility to customize the type of APM

Ethernet, "Dry contacts" (in/out), input for fire system connection

Communication interfaces

terminal block

Power outputs

terminal block

Time of delivery of alarm notifications

0.0001

Alarm detection time

0.0001

Time of granting access

0.0002

Maximum number of actuator control outputs

4 pcs

Operating temperature

+5...+40 °C

Marketing indication

Two-way, animated

Drive

Motorized (swinging) with "anti-panic" function

Capacity in evacuation mode

The passageway is completely open

Throughput in map pass mode, passes/hour

450

AC supply voltage

230 V

Maximum current consumption

2 A

Aisle width

600...900 mm

Number of built-in readers

2 pcs

Number of barcode scanners

2 pcs

Number of built-in displays

2 pcs

LED indicator of passage status

2 pcs

Passage sensors

infrared

Degree of enclosure protection

IP40

Uninterruptible power supply

LiFePO4

Overall dimensions of the rack, L/W/H

2840/225/1660 mm

Weight of one rack, not less

150 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
