Fire smoke detector optoelectronic linear addressable analogue IP 212-118 Amur-I

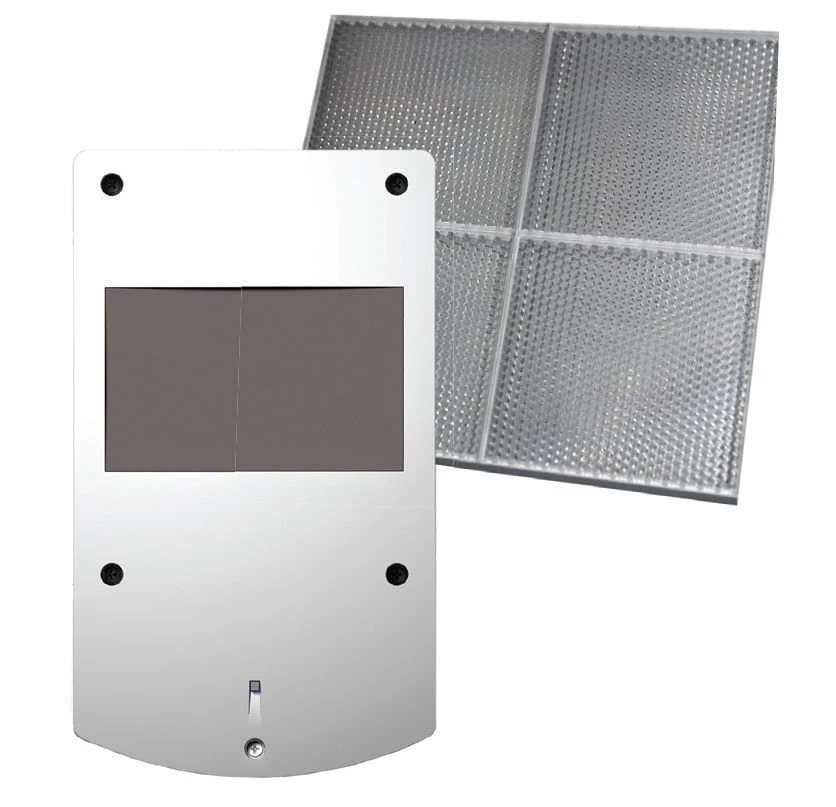

Smoke detector optical-electronic linear addressable analogue IP 212-118 "Amur-I" is designed for round-the-clock continuous operation in fire protection installations of buildings, structures, premises and equipment as part of an integrated security system ISB "Strelets-Integral" together with the device receiver-control "BSL240-I" and other devices receiver-control with a similar protocol exchange PPK - detector. The detector consists of: a block of emitter and receiver, creating a directional flow of infrared radiation and receiving radiation, reflectors that serve to change the direction of the flow of infrared radiation. Fire and fault notifications are transmitted via a signal line to the control panel, which is part of the ISB, and are displayed by the built-in two-colour LED indicator (LED). The detector is supplied with power via the SL. Overall dimensions of the BIP - 275160102, mass - 1000; Reflector unit SPNK.203625.003 - 25921019, mass - 450.
