Fire-resistant twisted pair cable KIng(A)-FRHF 2x2x1.00 mm

Available for Import

Fire-Resistant Twisted Pair Cable KIng(A)-FRHF for Data Transmission

Communication Cables & Wires

Manufacturer:ORELTEHKABEL LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire-resistant cable with twisted pair of cores KING(A)-FRHF 2x2x1,12 mm Fire-resistant cable with twisted pair of cores KING(A)-FRHF 2x2x0,50 mm Fire-resistant cable with twisted pair of conductors of KIng(A)-FRHF 2x2x0,80 mm grade Fire-resistant cable with twisted pair of conductors of KING(A)-FRHF 2x2x1,75 mm mark Fire-resistant cable with twisted pair of conductors of KIng(A)-FRHF 2x2x0,64 mm grade

Fire-resistant cable with twisted pair of cores KING(A)-FRHF 2x2x1,37 mm

Description

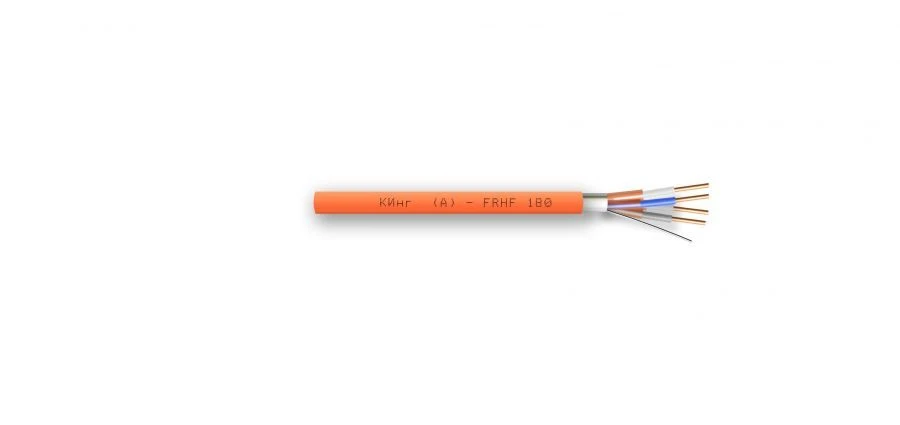

Fire-resistant cable for data transmission systems with two twisted pairs of copper single-wire conductive cores with nominal diameter of 1.00 mm, insulated with fire-resistant organosilicon rubber, winding of cores with PMA film in each pair, common screen from laminated aluminium foil and jacket from halogen-free polymer composition.

Specifications

Material of conductive cores

Copper

Insulation material of conductive cores

ceramic rubber

Outer sheath material

halogen-free

Electrical resistance of the core

25.5 ohm

Electrical insulation resistance

5000000000 ohm

Electrical capacity

-750000000

Test voltage between conductors

700 V

Attenuation factor

0.12

Number of conductive cores

4 pcs

Nominal cross-section of conductive cores

0.75 mm²

Rated AC voltage

0.3 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
